Solve for the power across loads R1, R3 and R5 using Kirchhoff's Law. Apply Cramer's Rule in solving each branch current

[answerhappygod]

Solve For The Power Across Loads R1 R3 And R5 Using Kirchhoff S Law Apply Cramer S Rule In Solving Each Branch Current 1 (68.1 KiB) Viewed 13 times

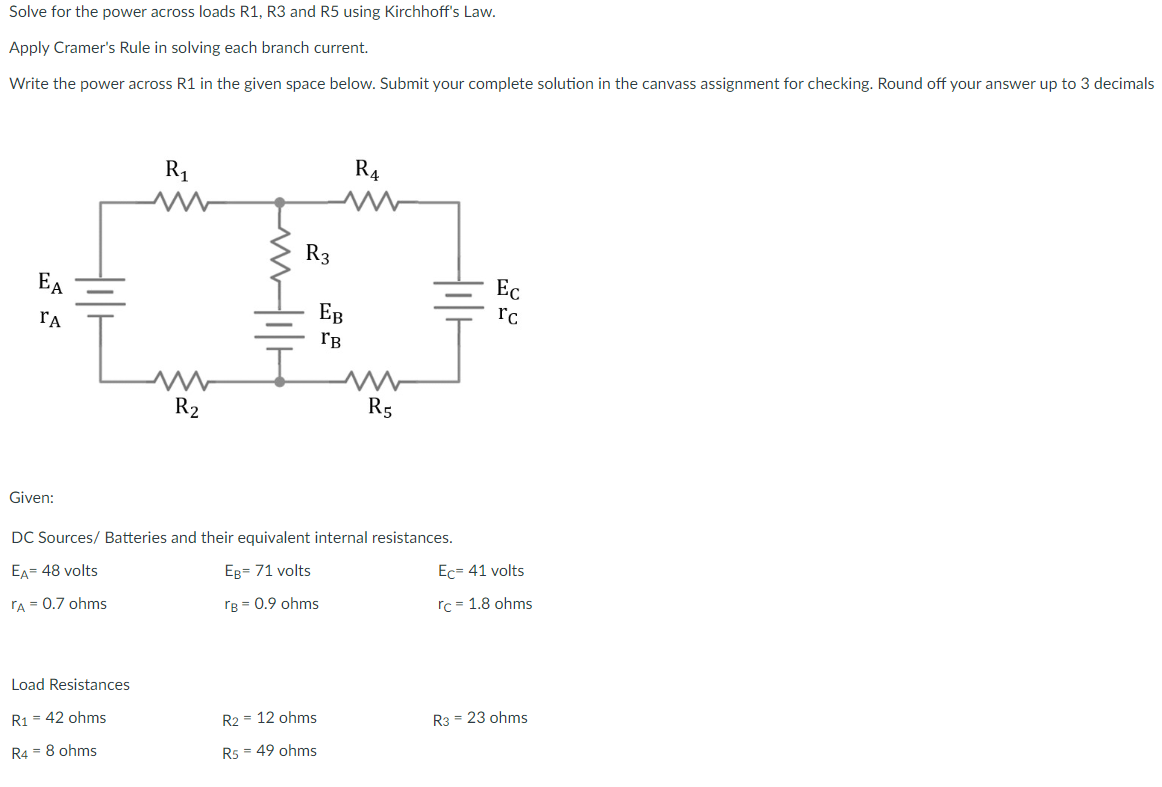

Solve for the power across loads R1, R3 and R5 using Kirchhoff's Law. Apply Cramer's Rule in solving each branch current. Write the power across R1 in the given space below. Submit your complete solution in the canvass assignment for checking. Round off your answer up to 3 decimals R₁ R4 EA Ec rc TA www R₂ www R5 Given: DC Sources/ Batteries and their equivalent internal resistances. EA= 48 volts EB= 71 volts TA = 0.7 ohms TB = 0.9 ohms Load Resistances R₁ 42 ohms R2 = 12 ohms R4 = 8 ohms R5 = 49 ohms will R3 EB IB Ec= 41 volts rc = 1.8 ohms R3 = 23 ohms
