b) The step response of a second order system is shown in Figure Q6. Result of Instruments Step Response Magnitude 3 2.7

Post by answerhappygod »

B The Step Response Of A Second Order System Is Shown In Figure Q6 Result Of Instruments Step Response Magnitude 3 2 7 1
B The Step Response Of A Second Order System Is Shown In Figure Q6 Result Of Instruments Step Response Magnitude 3 2 7 1 (144.77 KiB) Viewed 16 times

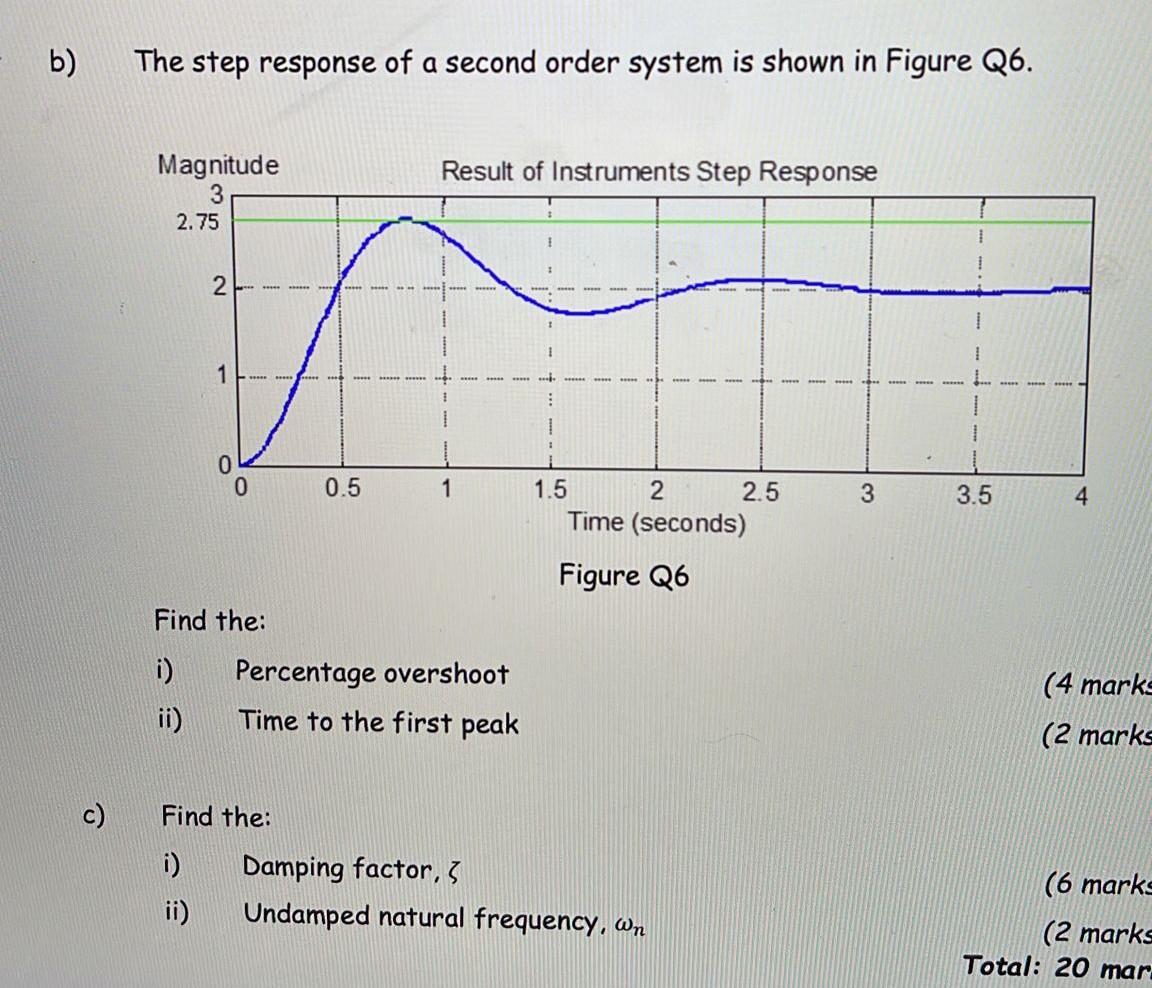

b) The step response of a second order system is shown in Figure Q6. Result of Instruments Step Response Magnitude 3 2.75 2 1 1 ⠀ 1.5 2.5 3 0.5 1 Percentage overshoot Time to the first peak Damping factor, Undamped natural frequency, wn 0 Find the: i) ii) Find the: i) ii) 2 Time (seconds) Figure Q6 4 (4 marks (2 marks (6 marks (2 marks Total: 20 mar. 3.5
