- For The System Seen In Figure Q2 Below C S G G G3 H H Figure Q2 A Using Mason S Rule Or Another Technique Sho 1 (166.22 KiB) Viewed 20 times
For the system seen in Figure Q2 below: C(s) + G₁ G₂ G3 H₂ H₁ Figure Q2 a) Using Mason's rule, or another technique, sho
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
For the system seen in Figure Q2 below: C(s) + G₁ G₂ G3 H₂ H₁ Figure Q2 a) Using Mason's rule, or another technique, sho

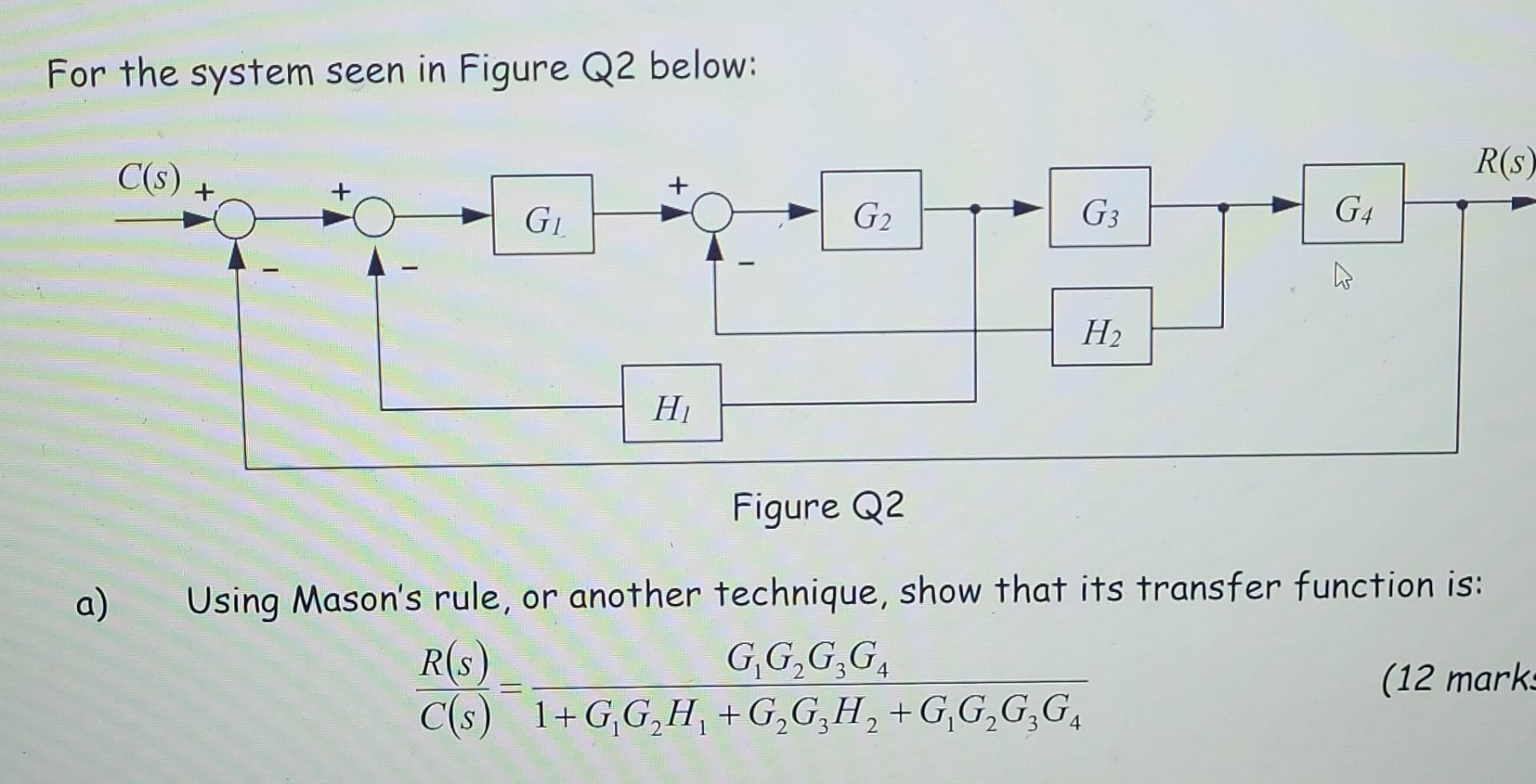

For the system seen in Figure Q2 below: C(s) + G₁ G₂ G3 H₂ H₁ Figure Q2 a) Using Mason's rule, or another technique, show that its transfer function is: R(s) G,G₂G₂G4 3 (12 marks C(s) 1+G,G,H, +G₂G₂H₂ +G₁G₂G₂G4 G4 K R(s)
