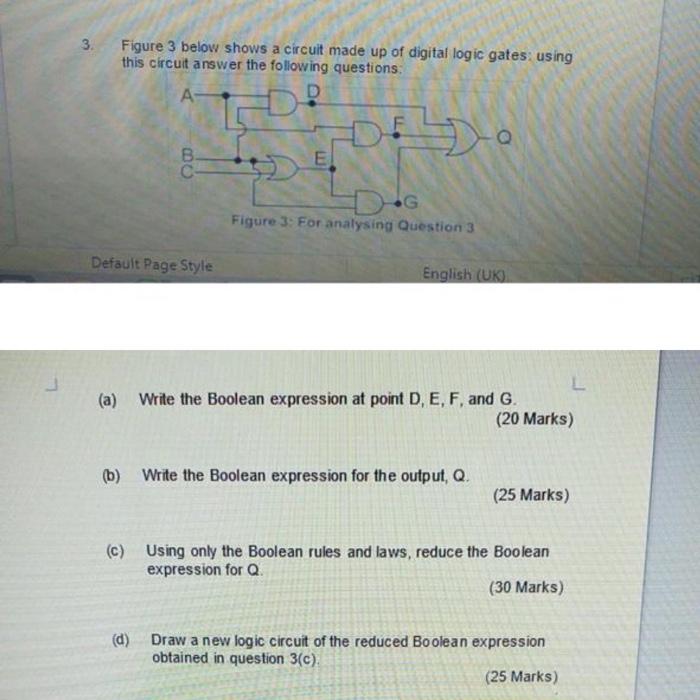

3. Figure 3 below shows a circuit made up of digital logic gates using this circuit answer the following questions: A- В
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
3. Figure 3 below shows a circuit made up of digital logic gates using this circuit answer the following questions: A- В
3. Figure 3 below shows a circuit made up of digital logic gates using this circuit answer the following questions: A- В. E G Figure 3. For analysing Question 3 Default Page Style English (UK) (a) Write the Boolean expression at point D, E, F, and G. (20 Marks) (b) Write the Boolean expression for the output, Q. (25 Marks) (c) Using only the Boolean rules and laws, reduce the Boolean expression for Q. (30 Marks) (d) Draw a new logic circuit of the reduced Boolean expression obtained in question 3(c) (25 Marks)
