A load impedance of 60 - j25 A is connected to a lossless transmission line with a characteristic impedance of 50 A2, us

Post by answerhappygod »

A Load Impedance Of 60 J25 A Is Connected To A Lossless Transmission Line With A Characteristic Impedance Of 50 A2 Us 1
A Load Impedance Of 60 J25 A Is Connected To A Lossless Transmission Line With A Characteristic Impedance Of 50 A2 Us 1 (17.28 KiB) Viewed 20 times

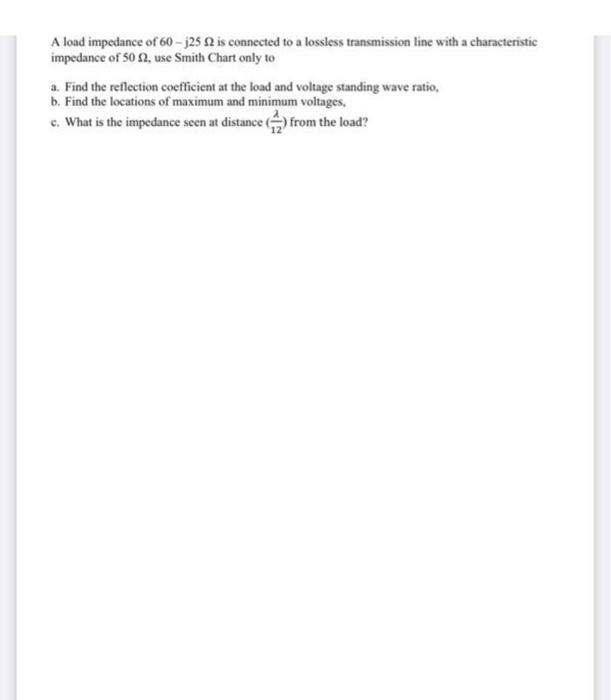

A load impedance of 60 - j25 A is connected to a lossless transmission line with a characteristic impedance of 50 A2, use Smith Chart only to a. Find the reflection coefficient at the load and voltage standing wave ratio, b. Find the locations of maximum and minimum voltages, c. What is the impedance seen at distance from the load?
