The coupling shown in Figure 3 is constructed from steel of rectangular cross section and is designed to transmit a tens

Post by answerhappygod »

The Coupling Shown In Figure 3 Is Constructed From Steel Of Rectangular Cross Section And Is Designed To Transmit A Tens 1
The Coupling Shown In Figure 3 Is Constructed From Steel Of Rectangular Cross Section And Is Designed To Transmit A Tens 1 (25.51 KiB) Viewed 14 times

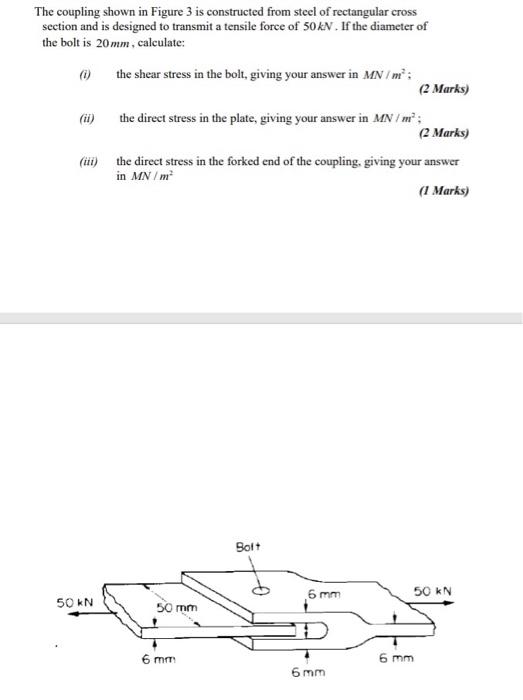

The coupling shown in Figure 3 is constructed from steel of rectangular cross section and is designed to transmit a tensile force of 50kN . If the diameter of the bolt is 20 mm, calculate: the shear stress in the bolt, giving your answer in MN/m": (2 Marks) (ii) the direct stress in the plate, giving your answer in MN/mº; (2 Marks) (iii) the direct stress in the forked end of the coupling, giving your answer in MN/m (1 Marks) Bolt 6 mm 50 KN 50 KN 50 mm 6 mm 6 mm 6 mm
