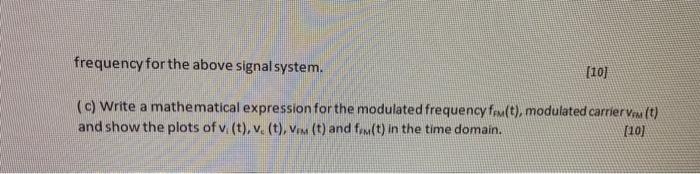

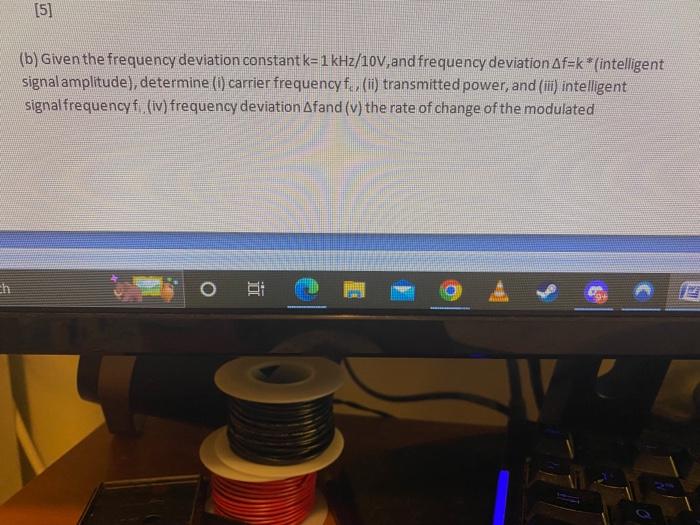

[5] (b) Given the frequency deviation constant k=1 kHz/10V, and frequency deviation Af=k intelligent signal amplitude), determine (1) carrier frequency f., (ii) transmitted power, and (ii) intelligent signal frequencyf (iv) frequency deviation Afand(v) the rate of change of the modulated ch 0 (0)
frequency for the above signal system. (10) (c) Write a mathematical expression for the modulated frequency f(t), modulated carrier Vr(t) and show the plots of vi(t), v. (t), Vim (t) and fou(t) in the time domain. (10)
