Question 2 02 Determine The Transfer Function Of The Rotational Mechanical System Shown In T S Figure Q2 The Variab 1 (42.5 KiB) Viewed 12 times
PLEASE ACCORDING TO THE 10MARKS

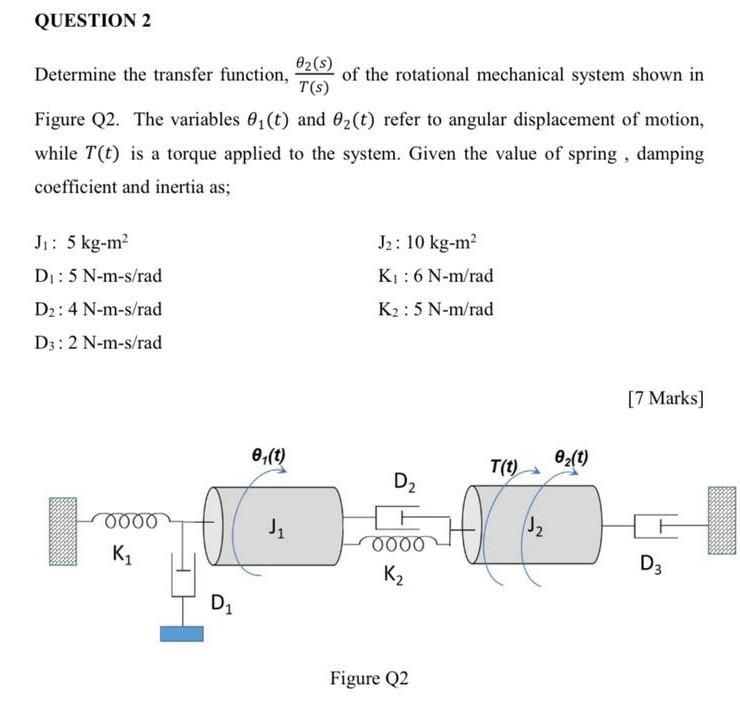

ASAP QUESTION 2 02() Determine the transfer function, of the rotational mechanical system shown in T(s) Figure Q2. The variables (t) and 02(t) refer to angular displacement of motion, while T(t) is a torque applied to the system. Given the value of spring, damping coefficient and inertia as; J.: 5 kg-m D: 5 N-m-s/rad D2: 4 N-m-s/rad Dz: 2 N-m-s/rad J2 : 10 kg-m2 K : 6 N-m/rad K2: 5 N-m/rad [7 Marks] 0,(t) ez(t) T(t) D2 0000 K J1 J2 00 K₂ D3 Di Figure Q2
