resistor R and inductor L in parallel as shown below. Problem 2: (25 pts. total) Consider an AC generator with V-V sin (

[answerhappygod]

Resistor R And Inductor L In Parallel As Shown Below Problem 2 25 Pts Total Consider An Ac Generator With V V Sin 1 (32.23 KiB) Viewed 13 times

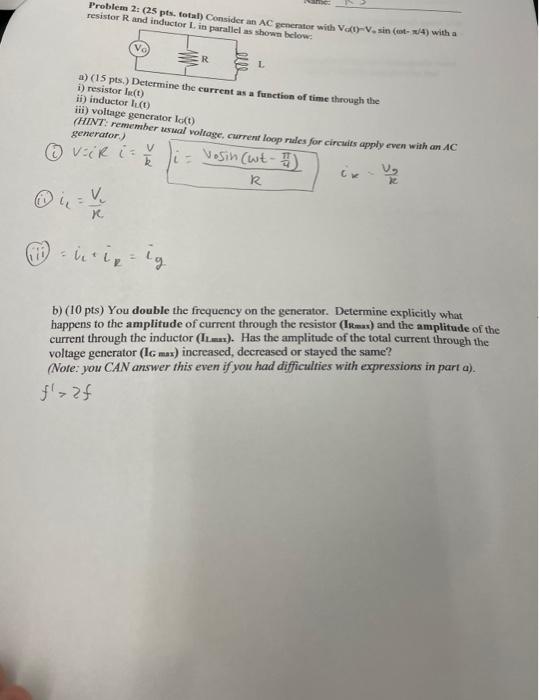

resistor R and inductor L in parallel as shown below. Problem 2: (25 pts. total) Consider an AC generator with V-V sin (-3/4) with a VO ER a) (15 pts.) Determine the current as a function of time through the i) resistor la(t) ii) inductor lu(t) iii) voltage generator Lot) (HINT, remember usual voltage, current loop rules for circuits apply even with an AC generator vosin (wt - 1 R С и R 6 vir iv R GO b) (10 pts) You double the frequency on the generator. Determine explicitly what happens to the amplitude of current through the resistor (lxw.s) and the amplitude of the current through the inductor (I). Has the amplitude of the total current through the voltage generator (IG max) increased, decreased or stayed the same? (Note: you CAN answer this even if you had difficulties with expressions in part a). f'>2f
