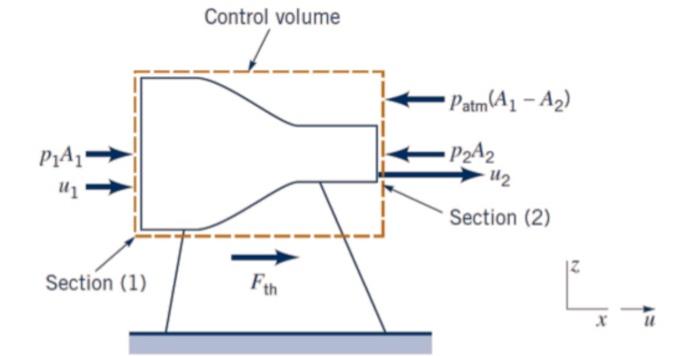

A static thrust stand as sketched below is to be designed for testing a jet engine. The following conditions are known for a typical test:
intak air velocity 200 m/s
exhaust gas velocity = 500 m/s;
intake cross sectional area = 1 m^2;
intake static pressure = 78.5 kPa (abs);
intake static temperature 268 K;
exhaust static pressure =101(abs).
Control Volume Patm A A2 P1a1 P2a U2 Section 2 Section 1 Fth 2 (16.68 KiB) Viewed 11 times
Control volume Patm(A-A2) P1A1 P2A₂ U2 Section (2) Section (1) Fth
