Q6. In the figure below there is one larger disc centred in 0 of radius 10 cm, a smaller disc centred in A of radius 3 c

Post by answerhappygod »

Q6 In The Figure Below There Is One Larger Disc Centred In 0 Of Radius 10 Cm A Smaller Disc Centred In A Of Radius 3 C 1
Q6 In The Figure Below There Is One Larger Disc Centred In 0 Of Radius 10 Cm A Smaller Disc Centred In A Of Radius 3 C 1 (46.6 KiB) Viewed 11 times

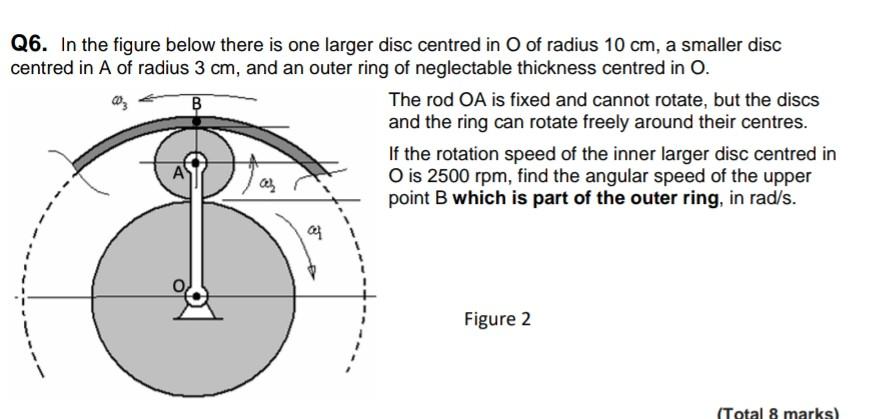

Q6. In the figure below there is one larger disc centred in 0 of radius 10 cm, a smaller disc centred in A of radius 3 cm, and an outer ring of neglectable thickness centred in O. B The rod OA is fixed and cannot rotate, but the discs and the ring can rotate freely around their centres. If the rotation speed of the inner larger disc centred in O is 2500 rpm, find the angular speed of the upper point B which is part of the outer ring, in rad/s. ca Figure 2 (Total 8 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
