6. Which of the following options is the condition for the triode to work in linear amplification? (10points) A. Positiv

[answerhappygod]

6 Which Of The Following Options Is The Condition For The Triode To Work In Linear Amplification 10points A Positiv 1 (28.06 KiB) Viewed 14 times

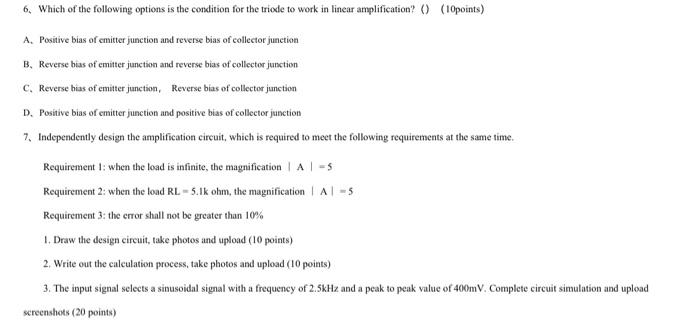

6. Which of the following options is the condition for the triode to work in linear amplification? (10points) A. Positive bias of emitter junction and reverse bias of collector junction B. Reverse bias of emitter junction and reverse bias of collector junction C. Reverse bias of emitter junction, Reverse bias of collector junction D. Positive bias of emitter junction and positive bias of collector junction 7. Independently design the amplification circuit, which is required to meet the following requirements at the same time. Requirement 1: when the load is infinite, the magnification A = 5 Requirement 2: when the load RL - 5.1k ohm, the magnification AI-5 Requirement 3: the error shall not be greater than 10% 1. Draw the design circuit, take photos and upload (10 points) 2. Write out the calculation process, take photos and upload (10 points) 3. The input signal selects a sinusoidal signal with a frequency of 2.5kHz and a peak to peak value of 400mV. Complete circuit simulation and upload screenshots (20 points)
