[20 pts total] A student measures the currents in the circuits shown below. Only two of the results are shown in the tab

[answerhappygod]

20 Pts Total A Student Measures The Currents In The Circuits Shown Below Only Two Of The Results Are Shown In The Tab 1 (85.31 KiB) Viewed 12 times

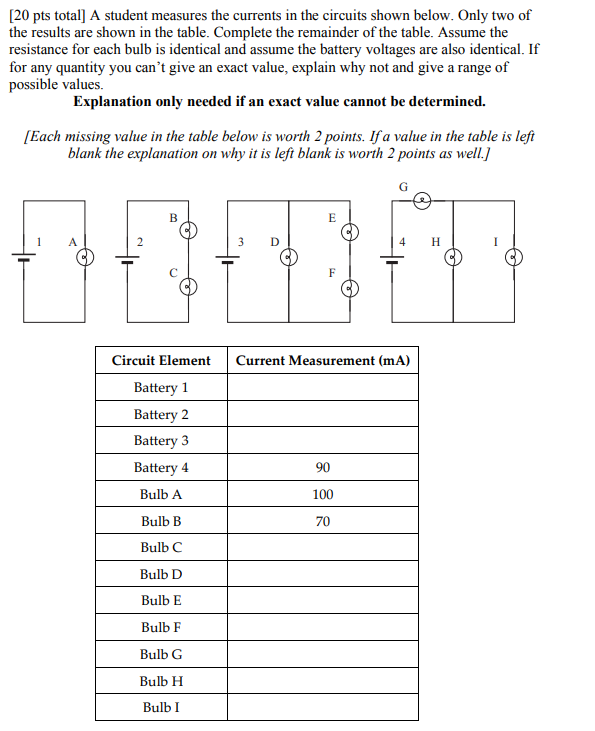

[20 pts total] A student measures the currents in the circuits shown below. Only two of the results are shown in the table. Complete the remainder of the table. Assume the resistance for each bulb is identical and assume the battery voltages are also identical. If for any quantity you can't give an exact value, explain why not and give a range of possible values Explanation only needed if an exact value cannot be determined. [Each missing value in the table below is worth 2 points. If a value in the table is left blank the explanation on why it is left blank is worth 2 points as well.] B E 3 4 H Circuit Element Current Measurement (mA) Battery 1 Battery 2 Battery 3 Battery 4 Bulb A 90 100 Bulb B 70 Bulb C Bulb D Bulb E Bulb F Bulb G Bulb H Bulb I
