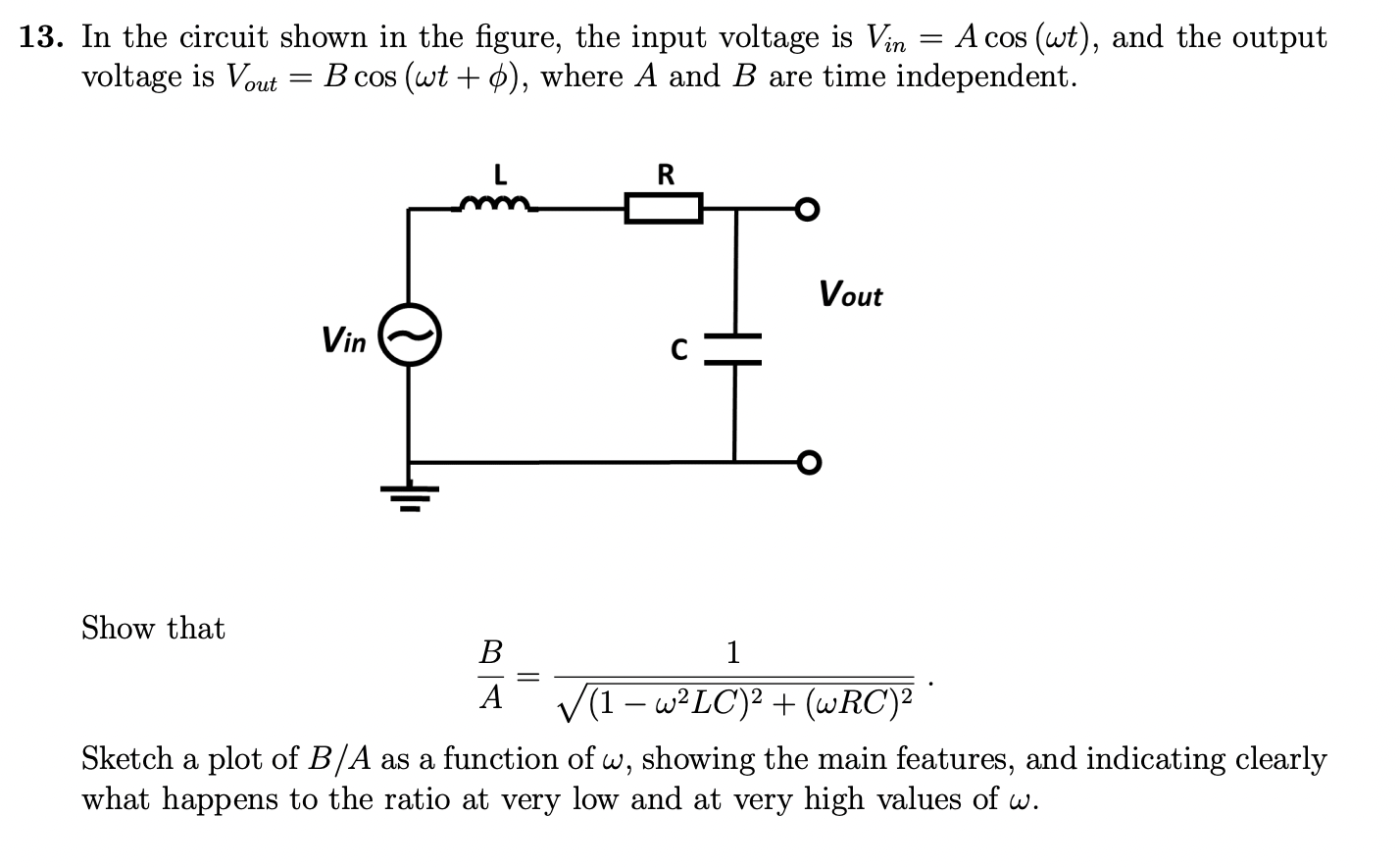

= 13. In the circuit shown in the figure, the input voltage is Vin A cos (wt), and the output voltage is Vout = B cos (wt + o), where A and B are time independent. R Vout Vin Show that B 1 A √(1-w²LC)² + (wRC)² Sketch a plot of B/A as a function of w, showing the main features, and indicating clearly what happens to the ratio at very low and at very high values of w.
