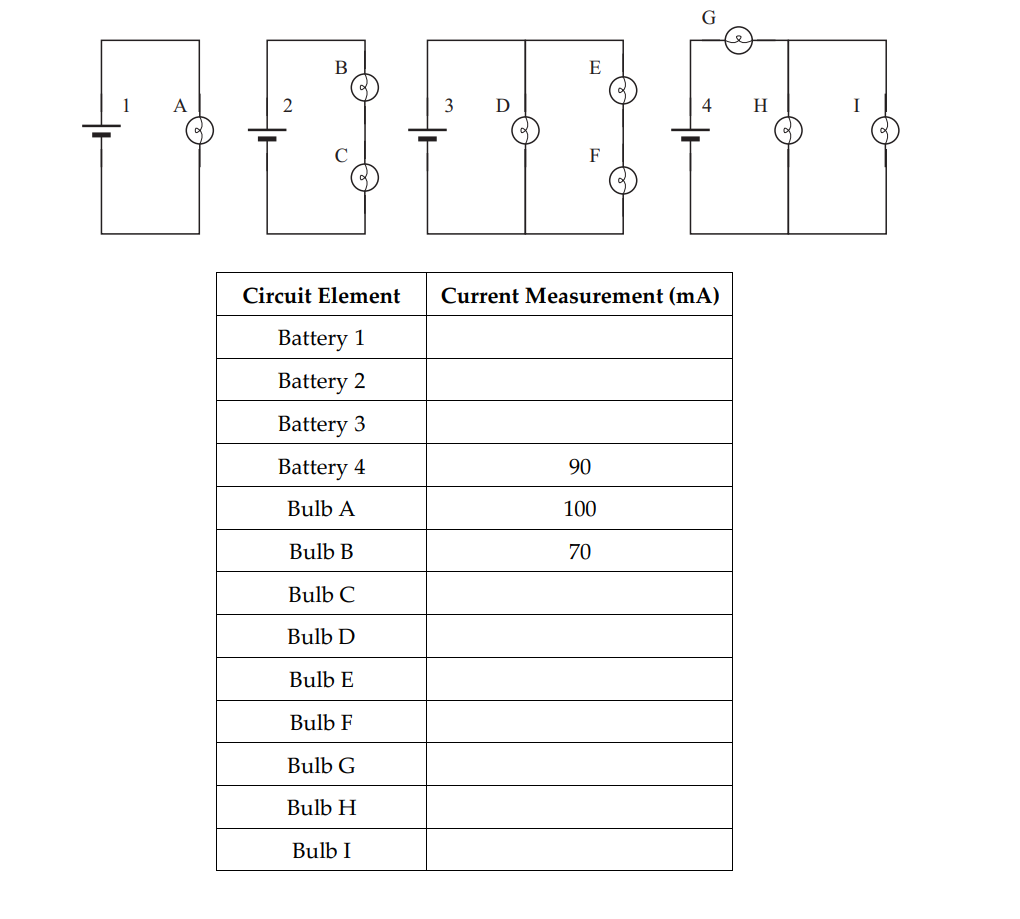

A student measures the currents in the circuits shown below.
Only two of the results are shown in the table. Complete the
remainder of the table. Assume the resistance for each bulb is
identical and assume the battery voltages are also identical. If
for any quantity you can’t give an exact value, explain why not and
give a range of possible values.
A Student Measures The Currents In The Circuits Shown Below Only Two Of The Results Are Shown In The Table Complete Th 1 (69.33 KiB) Viewed 13 times
A B Circuit Element Battery 1 Battery 2 Battery 3 Battery 4 Bulb A Bulb B Bulb C Bulb D Bulb E Bulb F Bulb G Bulb H Bulb I E 3 D 4 Current Measurement (mA) 90 100 70 H I
