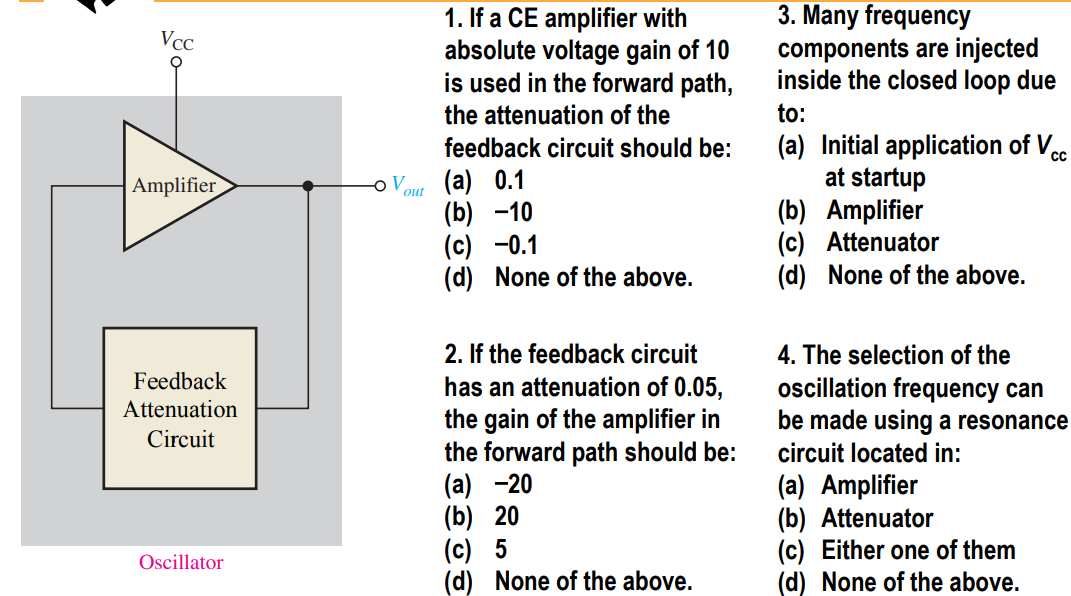

Vcc Amplifier Feedback Attenuation Circuit Oscillator V out 1. If a CE amplifier with absolute voltage gain of 10 is used in the forward path, the attenuation of the feedback circuit should be: (a) 0.1 (b) -10 (c) -0.1 (d) None of the above. 2. If the feedback circuit has an attenuation of 0.05, the gain of the amplifier in the forward path should be: (a) -20 (b) 20 (c) 5 (d) None of the above. 3. Many frequency components are injected inside the closed loop due to: (a) Initial application of Vcc at startup (b) Amplifier (c) Attenuator (d) None of the above. 4. The selection of the oscillation frequency can be made using a resonance circuit located in: (a) Amplifier (b) Attenuator (c) Either one of them (d) None of the above.
