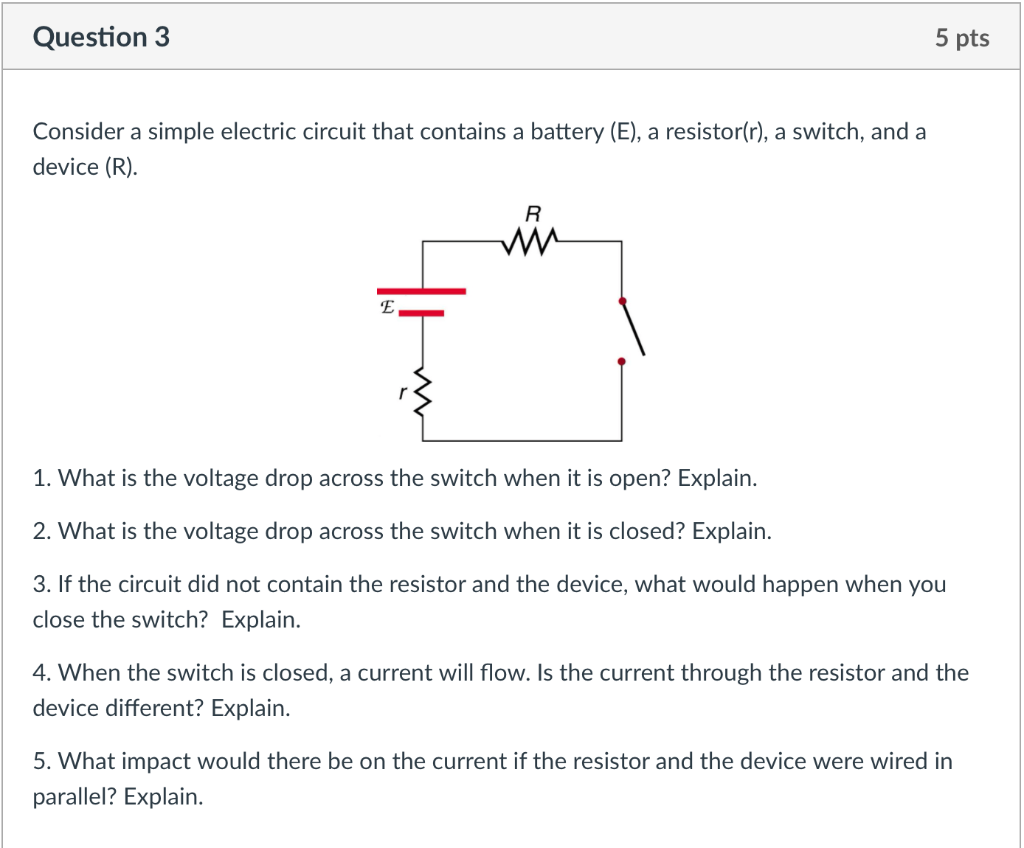

- Question 3 5 Pts Consider A Simple Electric Circuit That Contains A Battery E A Resistor R A Switch And A Device 1 (123.79 KiB) Viewed 13 times
can understandable thank you.
Question 3 5 pts Consider a simple electric circuit that contains a battery (E), a resistor(r), a switch, and a device (R). R E 1. What is the voltage drop across the switch when it is open? Explain. 2. What is the voltage drop across the switch when it is closed? Explain. 3. If the circuit did not contain the resistor and the device, what would happen when you close the switch? Explain. 4. When the switch is closed, a current will flow. Is the current through the resistor and the device different? Explain. 5. What impact would there be on the current if the resistor and the device were wired in parallel? Explain.
