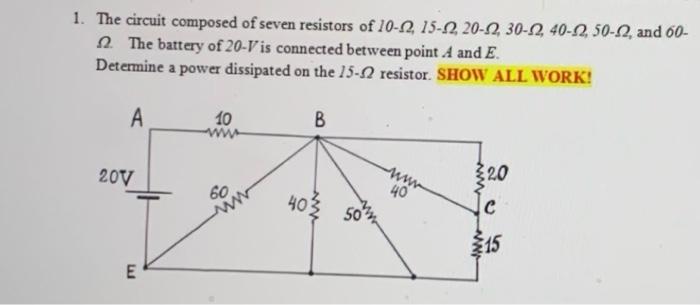

1. The circuit composed of seven resistors of 10-12, 15-12, 20-2, 30-2, 40-12, 50-52, and 60- 2. The battery of 20-V is connected between point A and E. Determine a power dissipated on the 15-2 resistor. SHOW ALL WORK! B A 10 ww 320 40 С 15 20V E 60 www 403 50%
