1. The circuit composed of seven resistors of 10-12, 15-22, 20-22, 30-2, 40-12, 50-12 and 60- 2. The battery of 20-V is

Post by answerhappygod »

1 The Circuit Composed Of Seven Resistors Of 10 12 15 22 20 22 30 2 40 12 50 12 And 60 2 The Battery Of 20 V Is 1
1 The Circuit Composed Of Seven Resistors Of 10 12 15 22 20 22 30 2 40 12 50 12 And 60 2 The Battery Of 20 V Is 1 (18.57 KiB) Viewed 10 times

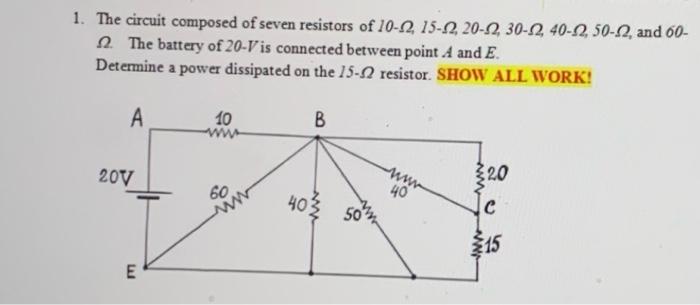

1. The circuit composed of seven resistors of 10-12, 15-22, 20-22, 30-2, 40-12, 50-12 and 60- 2. The battery of 20-V is connected between point A and E. Determine a power dissipated on the 15- resistor. SHOW ALL WORK! A 10 B 20V w 40 320 60 403 с www 503 315 E
