1. The circuit composed of seven resistors of 10-22, 15-2, 20-2, 30-0, 40-2, 50-2, and The battery of 20-V is connected

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1. The circuit composed of seven resistors of 10-22, 15-2, 20-2, 30-0, 40-2, 50-2, and The battery of 20-V is connected

Post by answerhappygod »

1 The Circuit Composed Of Seven Resistors Of 10 22 15 2 20 2 30 0 40 2 50 2 And The Battery Of 20 V Is Connected 1
1 The Circuit Composed Of Seven Resistors Of 10 22 15 2 20 2 30 0 40 2 50 2 And The Battery Of 20 V Is Connected 1 (88.76 KiB) Viewed 11 times

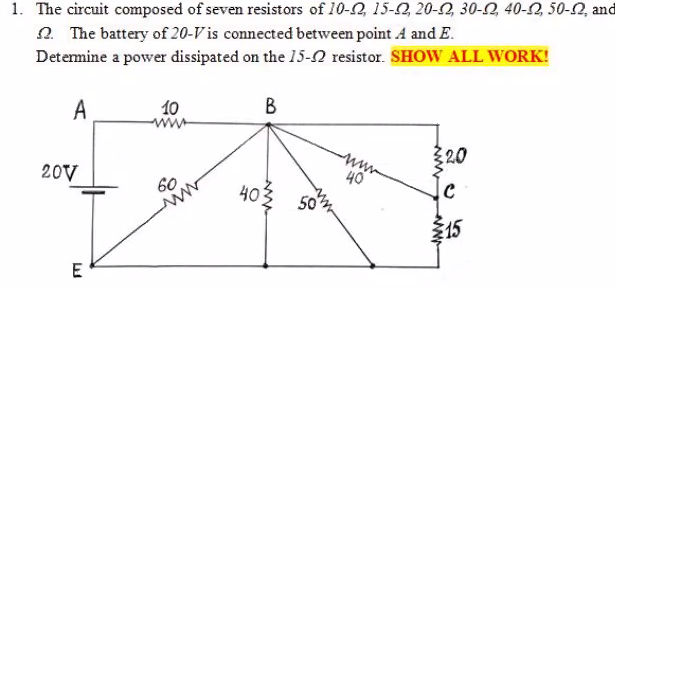

1. The circuit composed of seven resistors of 10-22, 15-2, 20-2, 30-0, 40-2, 50-2, and The battery of 20-V is connected between point A and E. Determine a power dissipated on the 15-2 resistor. SHOW ALL WORK! B 10 A 320 www 40 403 20V E 60 www 15
