Use the three circuits to answer the questions #13-14 w A B w 1 point 13. Assume that all three circuits pictured have t

Post by answerhappygod »

Use The Three Circuits To Answer The Questions 13 14 W A B W 1 Point 13 Assume That All Three Circuits Pictured Have T 1
Use The Three Circuits To Answer The Questions 13 14 W A B W 1 Point 13 Assume That All Three Circuits Pictured Have T 1 (45.18 KiB) Viewed 9 times

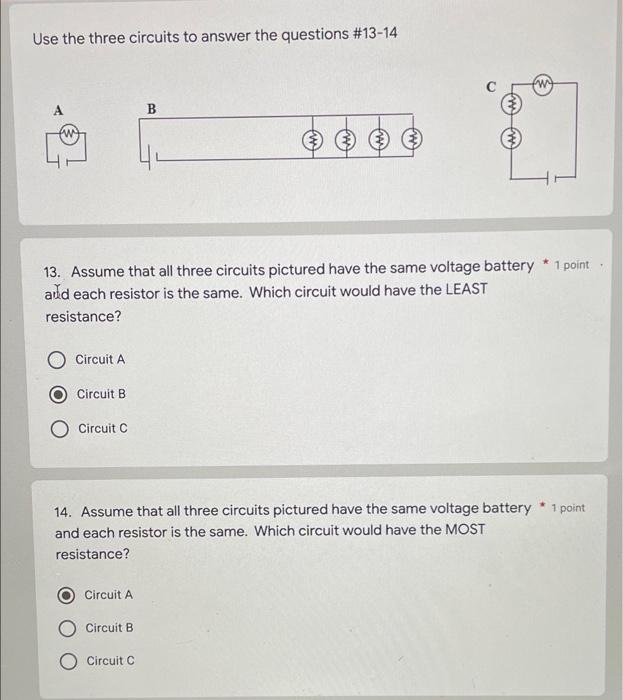

Use the three circuits to answer the questions #13-14 w A B w 1 point 13. Assume that all three circuits pictured have the same voltage battery and each resistor is the same. Which circuit would have the LEAST resistance? Circuit A Circuit B Circuit 1 point 14. Assume that all three circuits pictured have the same voltage battery and each resistor is the same. Which circuit would have the MOST resistance? Circuit A Circuit B Circuit
