Calculate the table moment of inertia of the wheel about an axis perpendicular to the screen passing through point A The

[answerhappygod]

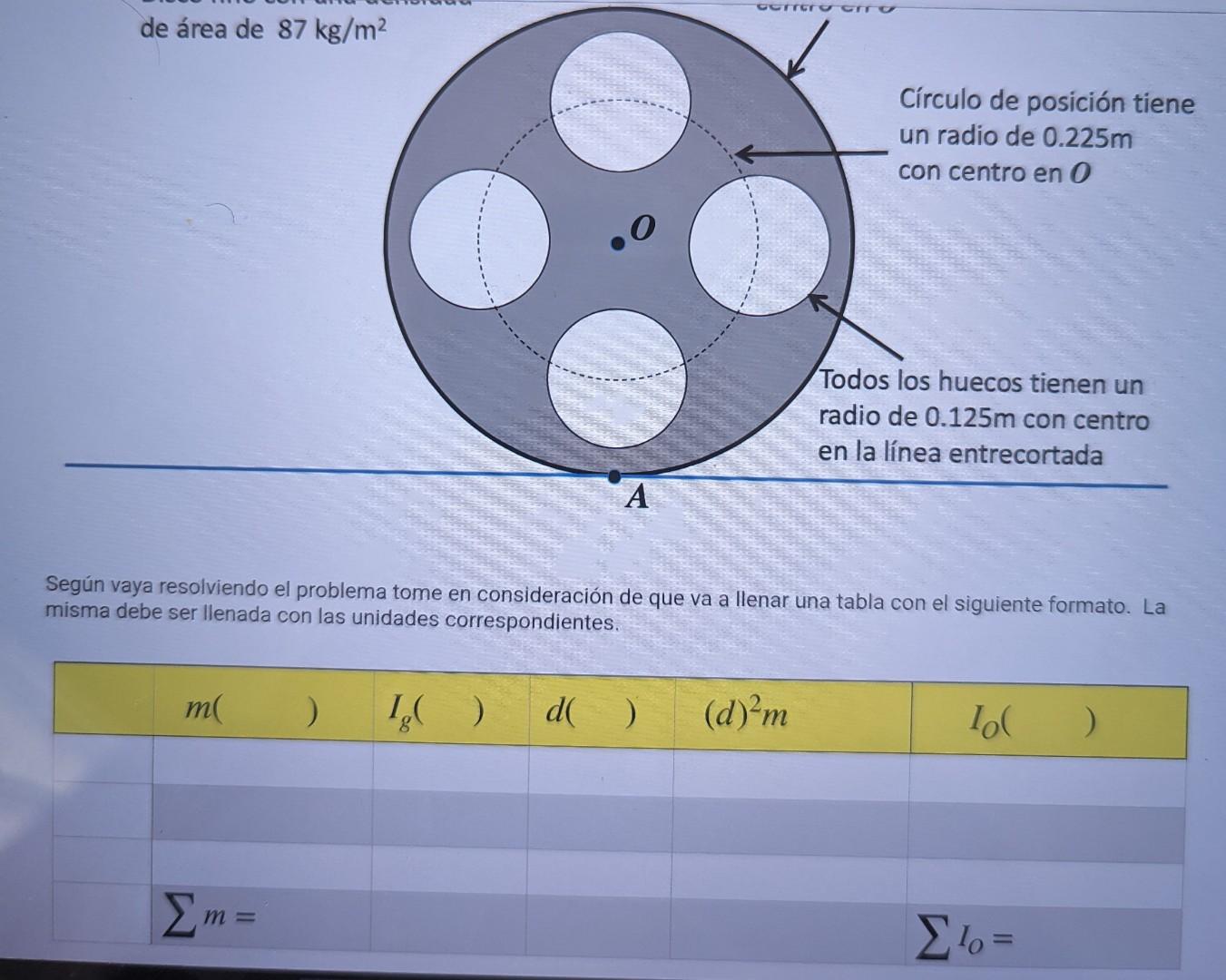

Calculate the table moment of inertia of the wheel about an axis perpendicular to the screen passing through point A The wheel (fine disc) has a radius of 0.375 in with cembu a O It has a mass of 87 kg per each square meter of area (area density 87 kg/m2), the new one has 4 cecular holes with a radius of 0 125 m each um The center of the holes are located in a position clicule that has a radius of 0 225 m with center at O

Calculate The Table Moment Of Inertia Of The Wheel About An Axis Perpendicular To The Screen Passing Through Point A The 1 (135.19 KiB) Viewed 15 times

corroso de área de 87 kg/m2 Círculo de posición tiene un radio de 0.225m con centro en O o Todos los huecos tienen un radio de 0.125m con centro en la línea entrecortada А Según vaya resolviendo el problema tome en consideración de que va a llenar una tabla con el siguiente formato. La misma debe ser llenada con las unidades correspondientes, ma ) 1C) d() (d)m lol Ση m = 10 =
