001 (part 1 of 3) 10.0 points 0. el An LC circuit is shown in the figure below. The 43 pF capacitor is initially charged

Post by answerhappygod »

001 Part 1 Of 3 10 0 Points 0 El An Lc Circuit Is Shown In The Figure Below The 43 Pf Capacitor Is Initially Charged 1
001 Part 1 Of 3 10 0 Points 0 El An Lc Circuit Is Shown In The Figure Below The 43 Pf Capacitor Is Initially Charged 1 (71.98 KiB) Viewed 8 times

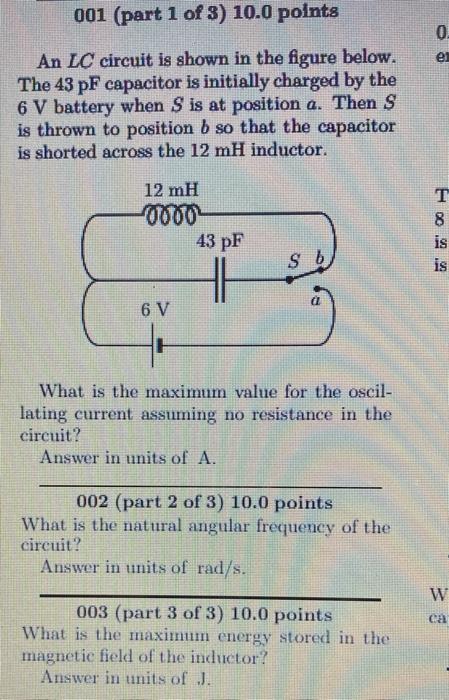

001 (part 1 of 3) 10.0 points 0. el An LC circuit is shown in the figure below. The 43 pF capacitor is initially charged by the 6 V battery when S is at position a. Then S is thrown to position b so that the capacitor is shorted across the 12 mH inductor. 12 mH E T 8 is is 43 pF S b 6 V H What is the maximum value for the oscil- lating current assuming no resistance in the circuit? Answer in units of A. 002 (part 2 of 3) 10.0 points What is the natural angular frequency of the circuit? Answer in units of rad/s. W ca 003 (part 3 of 3) 10.0 points What is the maximum energy stored in the magnetic field of the inductor? Answer in units of J.
