вс BB R R6olun Refer to the circuit on the left, please answer the following questions A4 R. 10ohm R R-20 ohm Please dra

Post by answerhappygod »

1
1 (46.72 KiB) Viewed 15 times

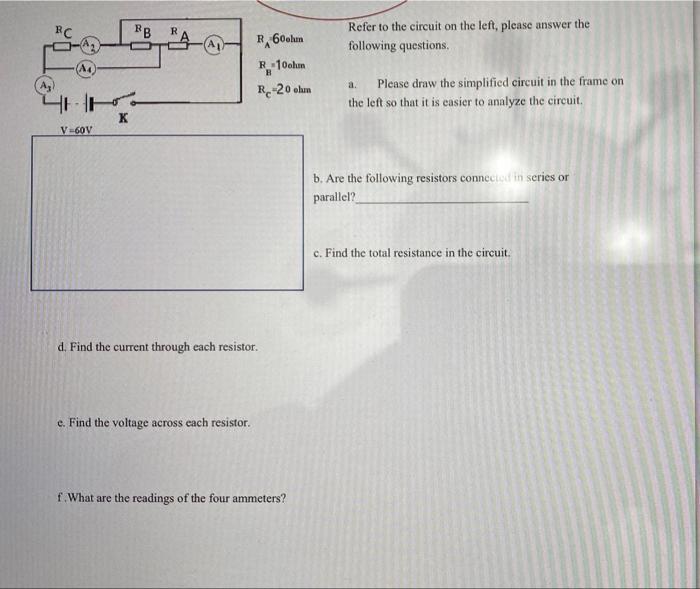

вс BB R R6olun Refer to the circuit on the left, please answer the following questions A4 R. 10ohm R R-20 ohm Please draw the simplified circuit in the frame on the left so that it is easier to analyze the circuit K V 60V b. Are the following resistors connected in series or parallel? c. Find the total resistance in the circuit. d. Find the current through each resistor. e. Find the voltage across each resistor. f. What are the readings of the four ammeters?
