11.23 For the system in Fig. 11.26, compute the total head on the pump and the power delivered by the pump to the coolant.

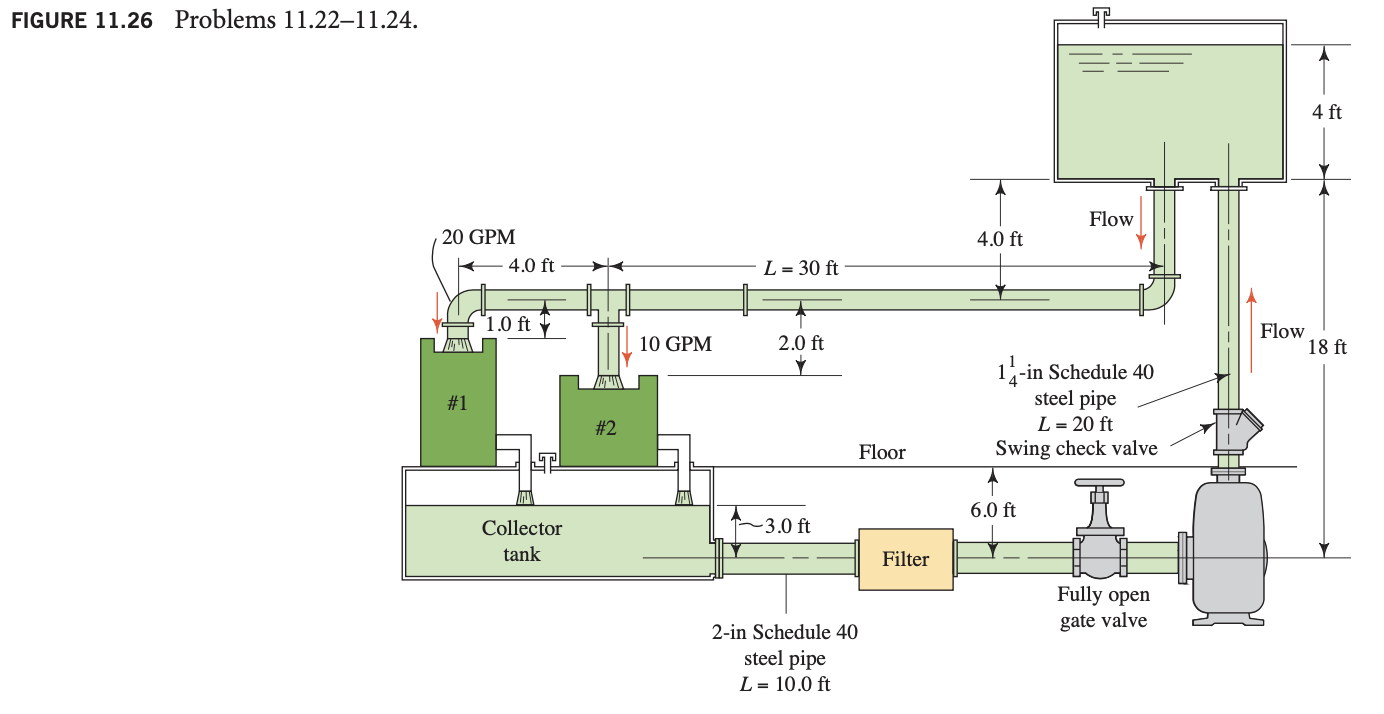

FIGURE 11.26 Problems 11.22-11.24. 与户 4 ft Flow 4.0 ft 20 GPM 4.0 ft L = 30 ft "1.0 ft 10 GPM Flow 18 ft 2.0 ft Y #1 14-in Schedule 40 steel pipe L = 20 ft Swing check valve #2 Floor 6.0 ft -3.0 ft Collector tank Filter Fully open gate valve 2-in Schedule 40 steel pipe L = 10.0 ft
