Consider the process and disturbance is described by the following transfer function: 5 1 G G 5s +1 5s +1 = Where the fo

[answerhappygod]

Consider The Process And Disturbance Is Described By The Following Transfer Function 5 1 G G 5s 1 5s 1 Where The Fo 1 (56 KiB) Viewed 11 times

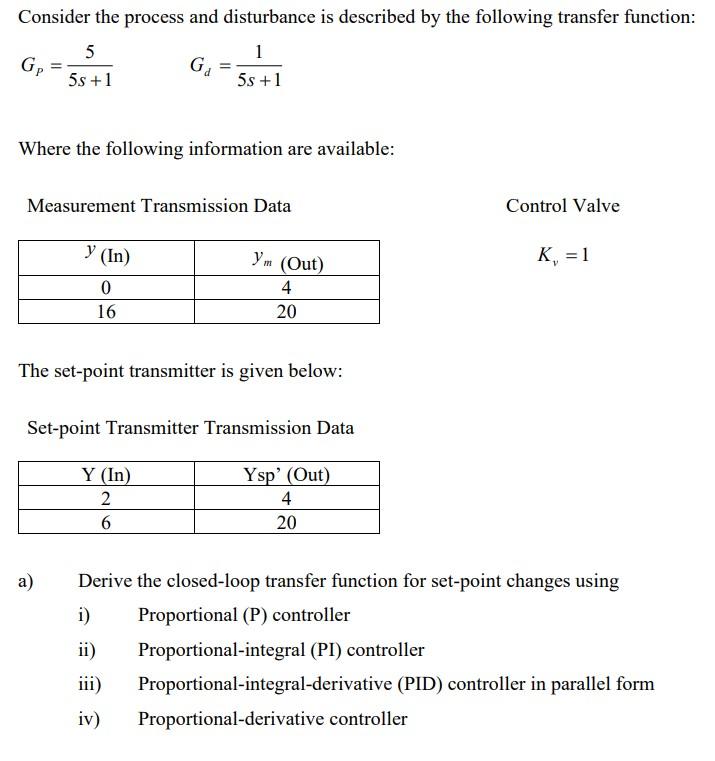

Consider the process and disturbance is described by the following transfer function: 5 1 G G 5s +1 5s +1 = Where the following information are available: Measurement Transmission Data Control Valve y (In) ym K = 1 0 16 (Out) 4 20 The set-point transmitter is given below: Set-point Transmitter Transmission Data Y (In) 2 6 Ysp' (Out) 4 20 a) Derive the closed-loop transfer function for set-point changes using i) Proportional (P) controller ii) Proportional-integral (PI) controller iii) Proportional-integral-derivative (PID) controller in parallel form iv) Proportional-derivative controller
