Determine the carbonization time required to reach a concentration of 0.30% by weight of carbon at 4 mm in a steel alloy originally containing 0.10% by weight of carbon. Consider that the concentration on the surface must be maintained at 0.90% by weight of carbon and that the treatment will be carried out at a temperature of 110 ºC.

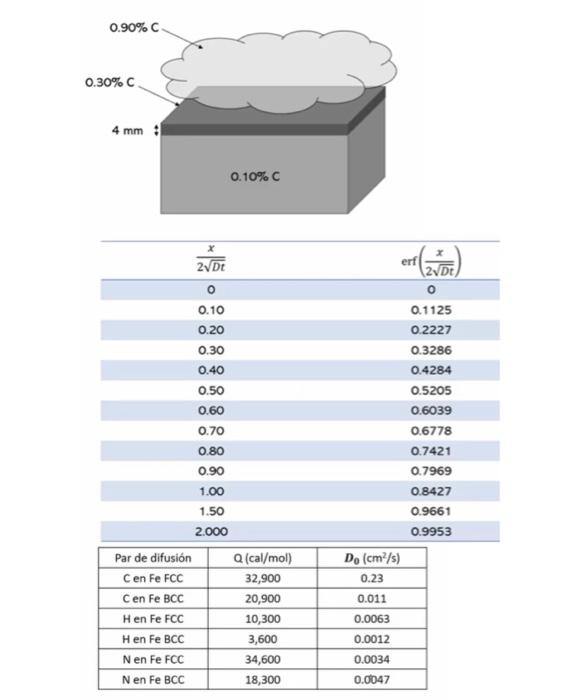

C diffuses into Iron FCC structure

Determine The Carbonization Time Required To Reach A Concentration Of 0 30 By Weight Of Carbon At 4 Mm In A Steel Alloy 1 (34.44 KiB) Viewed 20 times

0.90% 0.30% C 4 mm: 0.10% erf 2VD) 2V DE o 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 1.50 2.000 Par de difusión Q(cal/mol) Cen Fe FCC 32,900 Cen Fe BCC 20,900 Hen Fe FCC 10,300 Hen Fe BCC 3,600 N en Fe FCC 34,600 Nen Fe BCC 18,300 0.1125 0.2227 0.3286 0.4284 0.5205 0.6039 0.6778 0.7421 0.7969 0.8427 0.9661 0.9953 D. (cm/s) 0.23 0.011 0.0063 0.0012 0.0034 0.0047
