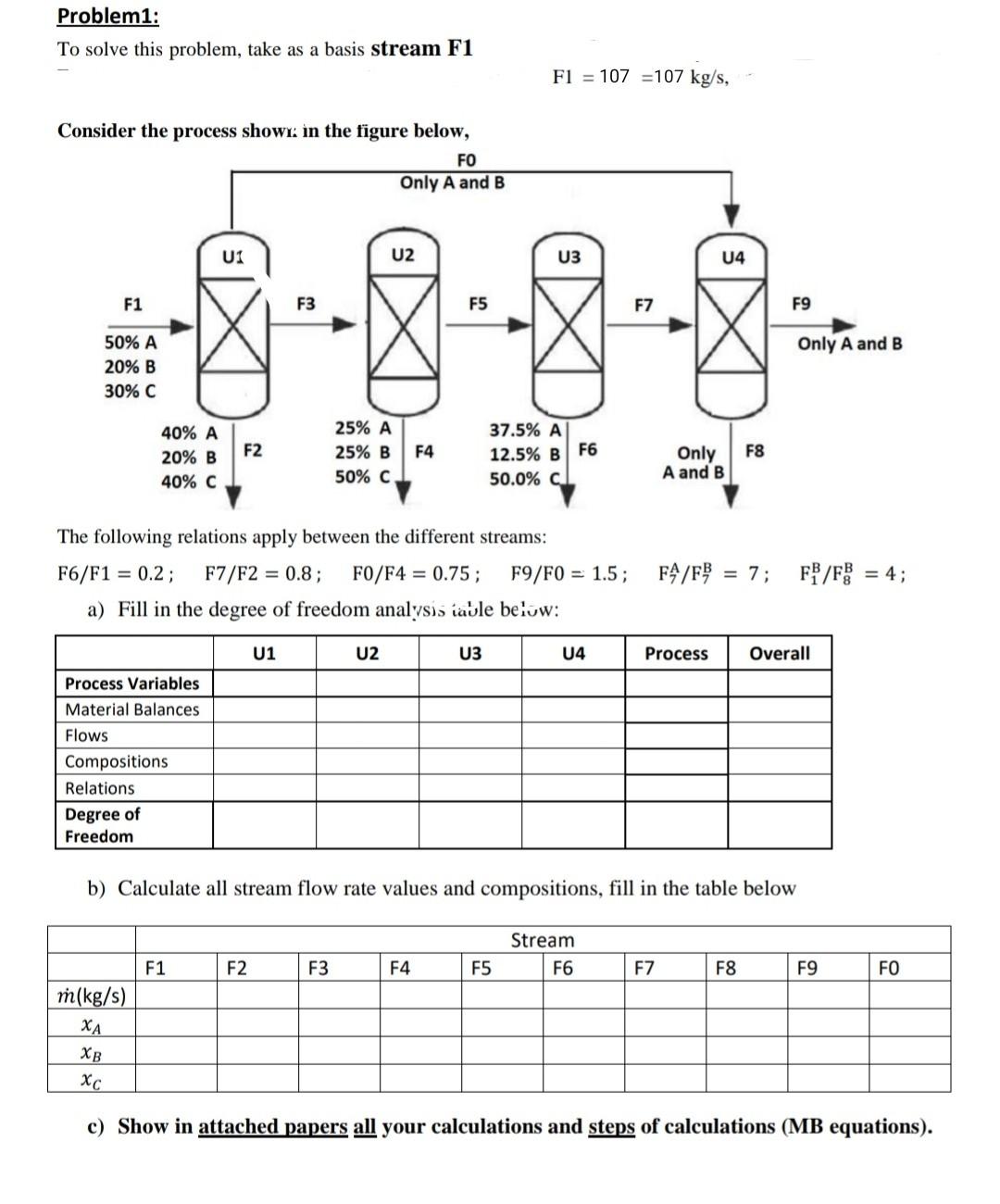

Problem1: To solve this problem, take as a basis stream F1 F1 = 107 =107 kg/s, Consider the process showr. in the figure below, FO Only A and B UI U2 U3 14 F1 F3 F5 F7 F9 Only A and B 50% A 20% B 30% C 40% A 20% B 40% C F2 25% A 25% B 50% C F4 37.5% A 12.5% B 50.0% C F6 F8 Only A and B The following relations apply between the different streams: F6/F1 = 0.2; F7/F2 = 0.8; FO/F4 = 0.75; F9/F0 = 1.5; a) Fill in the degree of freedom analysis iable beluw: F4/F = 7; FB/FB = 4; = U1 U2 U3 U4 Process Overall Process Variables Material Balances Flows Compositions Relations Degree of Freedom b) Calculate all stream flow rate values and compositions, fill in the table below Stream F6 F1 F2 F3 F4 F5 F7 F8 F9 FO . m(kg/s) XB хс c) Show in attached papers all your calculations and steps of calculations (MB equations).
