Task 2 Q2. A gas mixture containing A mole % CO2 and 3 mole % ethanol is passed through an absorption tower to separate

[answerhappygod]

Task 2 Q2 A Gas Mixture Containing A Mole Co2 And 3 Mole Ethanol Is Passed Through An Absorption Tower To Separate 1 (52.87 KiB) Viewed 8 times

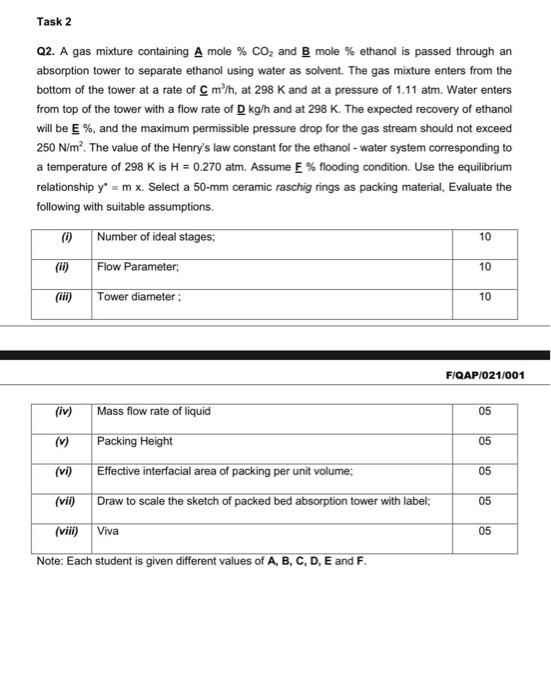

Task 2 Q2. A gas mixture containing A mole % CO2 and 3 mole % ethanol is passed through an absorption tower to separate ethanol using water as solvent. The gas mixture enters from the bottom of the tower at a rate of Cmº/h, at 298 K and at a pressure of 1.11 atm. Water enters from top of the tower with a flow rate of Dkg/h and at 298 K. The expected recovery of ethanol will be E %, and the maximum permissible pressure drop for the gas stream should not exceed 250 N/m . The value of the Henry's law constant for the ethanol - water system corresponding to a temperature of 298 K is H = 0.270 atm. Assume E % flooding condition. Use the equilibrium relationship y* = mx Select a 50-mm ceramic raschig rings as packing material, Evaluate the following with suitable assumptions. (1) Number of ideal stages: 10 (ii) Flow Parameter; 10 (iii) Tower diameter: 10 FIQAP/021/001 ( (iv) Mass flow rate of liquid 05 (v) Packing Height 05 05 (vi) Effective interfacial area of packing per unit volume; (vii) Draw to scale the sketch of packed bed absorption tower with label (viil) Viva 05 05 Note: Each student is given different values of A, B, C, D, E and F.
