The hydraulic cylinder pushes link BC causing the rotation of link OA about fixed 0. At this instant, link BC is moving

Post by answerhappygod »

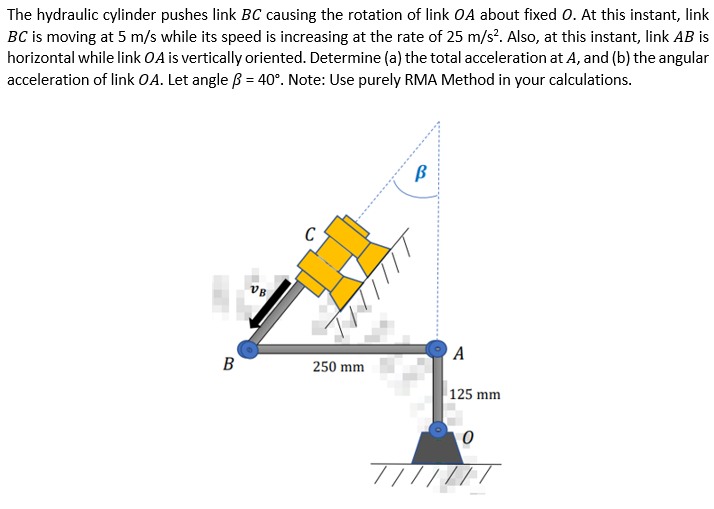

The Hydraulic Cylinder Pushes Link Bc Causing The Rotation Of Link Oa About Fixed 0 At This Instant Link Bc Is Moving 1
The Hydraulic Cylinder Pushes Link Bc Causing The Rotation Of Link Oa About Fixed 0 At This Instant Link Bc Is Moving 1 (53.71 KiB) Viewed 9 times
The hydraulic cylinder pushes link BC causing the rotation of link OA about fixed 0. At this instant, link BC is moving at 5 m/s while its speed is increasing at the rate of 25 m/s2. Also, at this instant, link AB is horizontal while link OA is vertically oriented. Determine (a) the total acceleration at A, and (b) the angular acceleration of link OA. Let angle B = 40°. Note: Use purely RMA Method in your calculations. B С VB B A 250 mm 125 mm 0 7//// T
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
