A Trapezoidal combined footing is show in the figure below. L2 = 1.3 m and L1 = 0.95 m are necessary based on the availa

Post by answerhappygod »

A Trapezoidal Combined Footing Is Show In The Figure Below L2 1 3 M And L1 0 95 M Are Necessary Based On The Availa 1
A Trapezoidal Combined Footing Is Show In The Figure Below L2 1 3 M And L1 0 95 M Are Necessary Based On The Availa 1 (45.3 KiB) Viewed 11 times

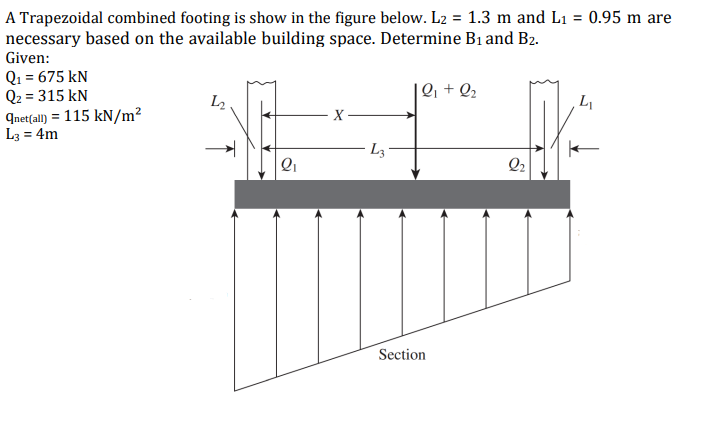

A Trapezoidal combined footing is show in the figure below. L2 = 1.3 m and L1 = 0.95 m are necessary based on the available building space. Determine B1 and B2. Given: Q1 = 675 kN Q2 = 315 kN Q+Q2 L2 L 4net(all) = 115 kN/m² L3 = 4m L3 Q Q2 Section
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
