Question 4 | 20 Points) For the mat foundation shown in the figure below: A. Calculate the depth of embedment for fully

Post by answerhappygod »

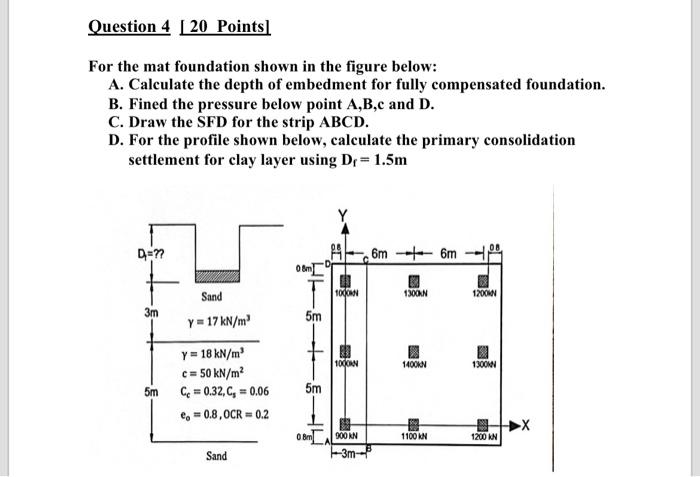

Question 4 20 Points For The Mat Foundation Shown In The Figure Below A Calculate The Depth Of Embedment For Fully 1
Question 4 20 Points For The Mat Foundation Shown In The Figure Below A Calculate The Depth Of Embedment For Fully 1 (38.21 KiB) Viewed 9 times
Question 4 | 20 Points) For the mat foundation shown in the figure below: A. Calculate the depth of embedment for fully compensated foundation. B. Fined the pressure below point A,B,c and D. C. Draw the SFD for the strip ABCD. D. For the profile shown below, calculate the primary consolidation settlement for clay layer using D = 1.5m Dn 6m ---- 6m 08m TOON 1300KN 1200N 3m 5m Sand y = 17 kN/m Y = 18 kN/m <= 50 kN/m2 Ce = 0.32, C, = 0.06 en = 0.8.0CR = 0.2 100ORN 1400KN 13001 5m 5m 假如 1100 KN 1200 KN 0.0001N --3m- Sand
