can you please answer all the relevent parts of the question with the proper working out and diagrams
please!!
its about moment distribution method, please
answer like top fiber or left...
Can You Please Answer All The Relevent Parts Of The Question With The Proper Working Out And Diagrams Please Its About 1 (52.59 KiB) Viewed 12 times

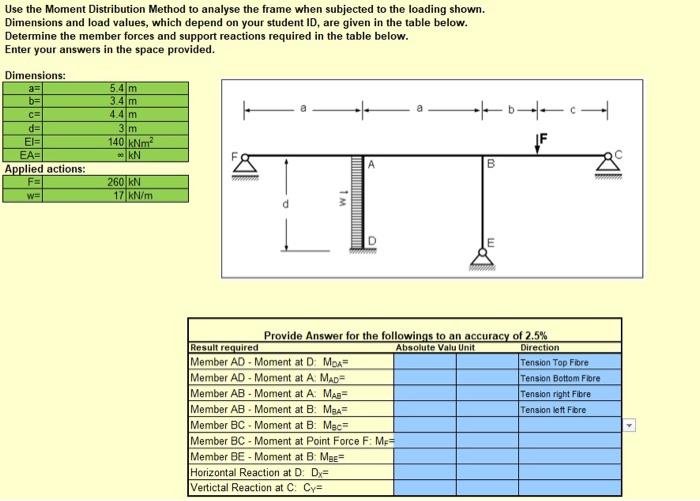

Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below. Determine the member forces and support reactions required in the table below. Enter your answers in the space provided. 5.4 m 3.4 m 4.4m -- Dimensions: a b= c= d= EI= EA- Applied actions: F w= 3 m 140 kNm 0 KN ---- F A 260 KN 17 kN/m IM |||||||||||||||||||||||||||||| Provide Answer for the followings to an accuracy of 2.5% Result required Absolute Valu Unit Direction Member AD. Moment at D MBA Tension Top Fibre Member AD - Moment at A MAD Tension Bottom Fiore Member AB - Moment at A. Mas Tension right Fibre Member AB - Moment at B: MzA= Tension lett Fibre Member BC - Moment at B: Mec Member BC - Moment at Point Force F: ME= Member BE - Moment at B: Mee Horizontal Reaction at D: Dy= Vertictal Reaction at C: Cy=
