A beam is loaded as shown. For this beam, answer the following questions: A. Ignoring the self-weight of the beam, what

Post by answerhappygod »

A Beam Is Loaded As Shown For This Beam Answer The Following Questions A Ignoring The Self Weight Of The Beam What 1
A Beam Is Loaded As Shown For This Beam Answer The Following Questions A Ignoring The Self Weight Of The Beam What 1 (49.85 KiB) Viewed 8 times

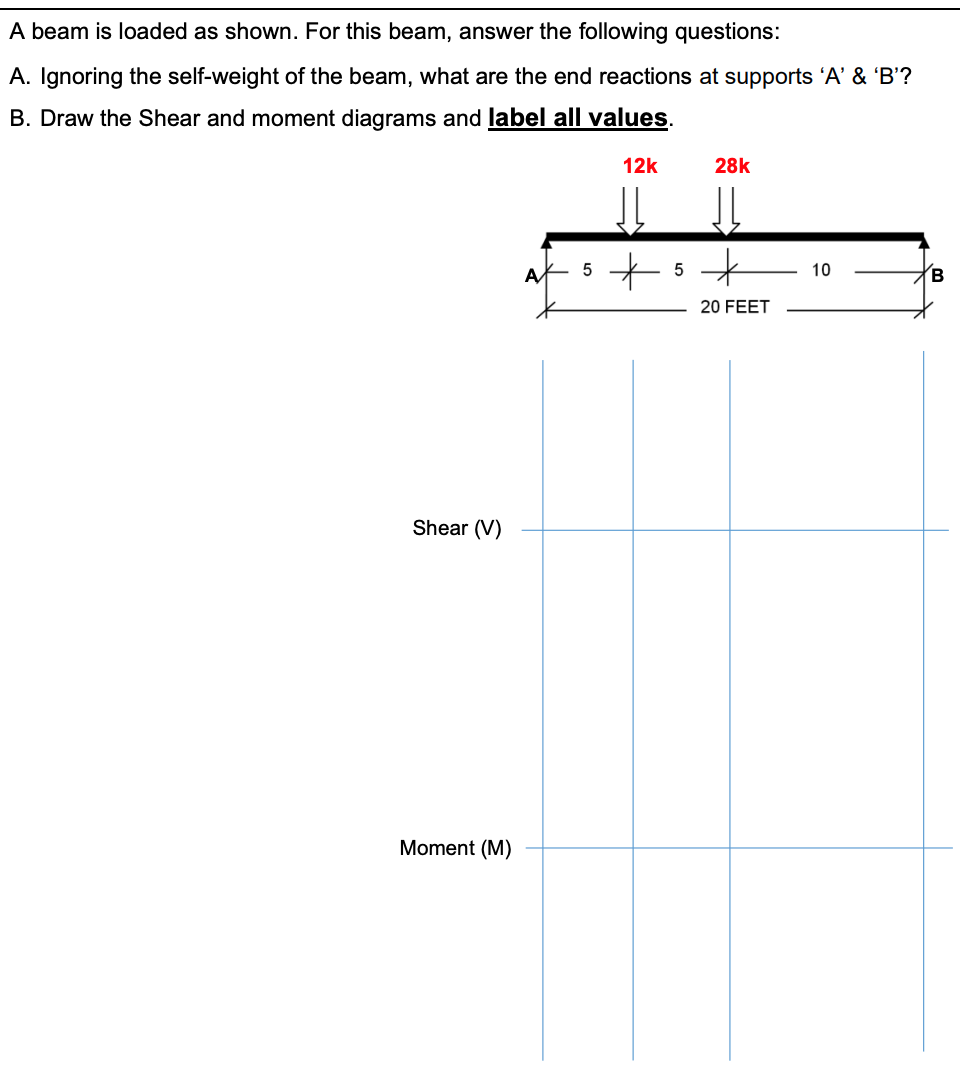

A beam is loaded as shown. For this beam, answer the following questions: A. Ignoring the self-weight of the beam, what are the end reactions at supports 'A' & 'B'? B. Draw the Shear and moment diagrams and label all values. 12k 28k 5 t 5 + 10 B 20 FEET Shear (V) Moment (M)
