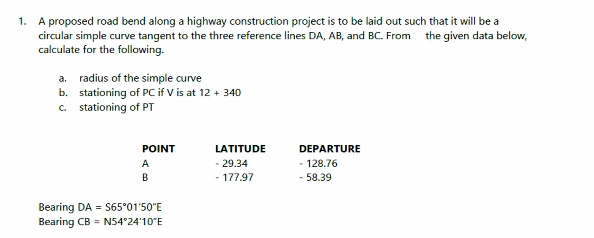

1 A Proposed Road Bend Along A Highway Construction Project Is To Be Laid Out Such That It Will Be A Circular Simple Cu 1 (43.86 KiB) Viewed 7 times

1. A proposed road bend along a highway construction project is to be laid out such that it will be a circular simple curve tangent to the three reference lines DA, AB, and BC. From the given data below, calculate for the following. a. radius of the simple curve b. stationing of PC if V is at 12 + 340 c. stationing of PT POINT А B LATITUDE - 29.34 - 177.97 DEPARTURE - 128.76 - 58.39 Bearing DA = S65°01'50"E Bearing CB = N54°24'10"E
