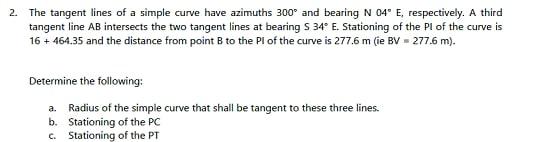

2. The tangent lines of a simple curve have azimuths 300 and bearing N 04" E, respectively. A third tangent line AB intersects the two tangent lines at bearing S 34° E. Stationing of the PI of the curve is 16 + 464.35 and the distance from point B to the Pl of the curve is 277.6 m (ie BV - 277.6 m). Determine the following: a. Radius of the simple curve that shall be tangent to these three lines. b. Stationing of the PC c. Stationing of the PT
