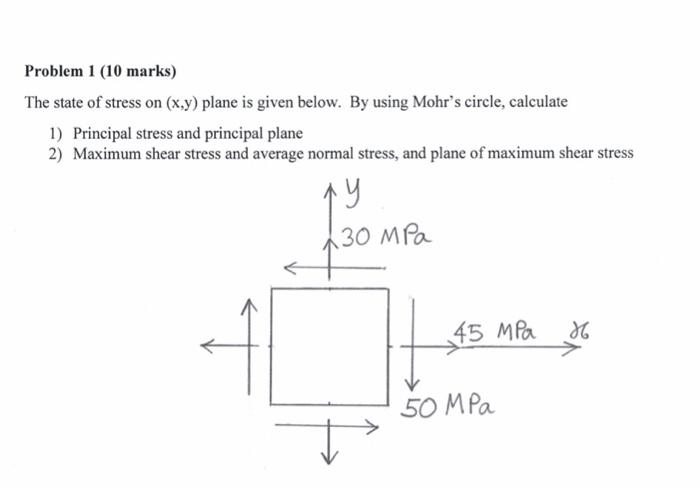

Problem 1 (10 marks) The state of stress on (x,y) plane is given below. By using Mohr’s circle, calculate 1) Principal stress and principal plane 2) Maximum shear stress and average normal stress, and plane of maximum shear stress ny 130 MPa 45 MPa do 50 MPa
