A rock revetment with the cross section above is proposed. The design wave climate is Hmo = 2.5 m and Tp = 8 s. Assume w

[answerhappygod]

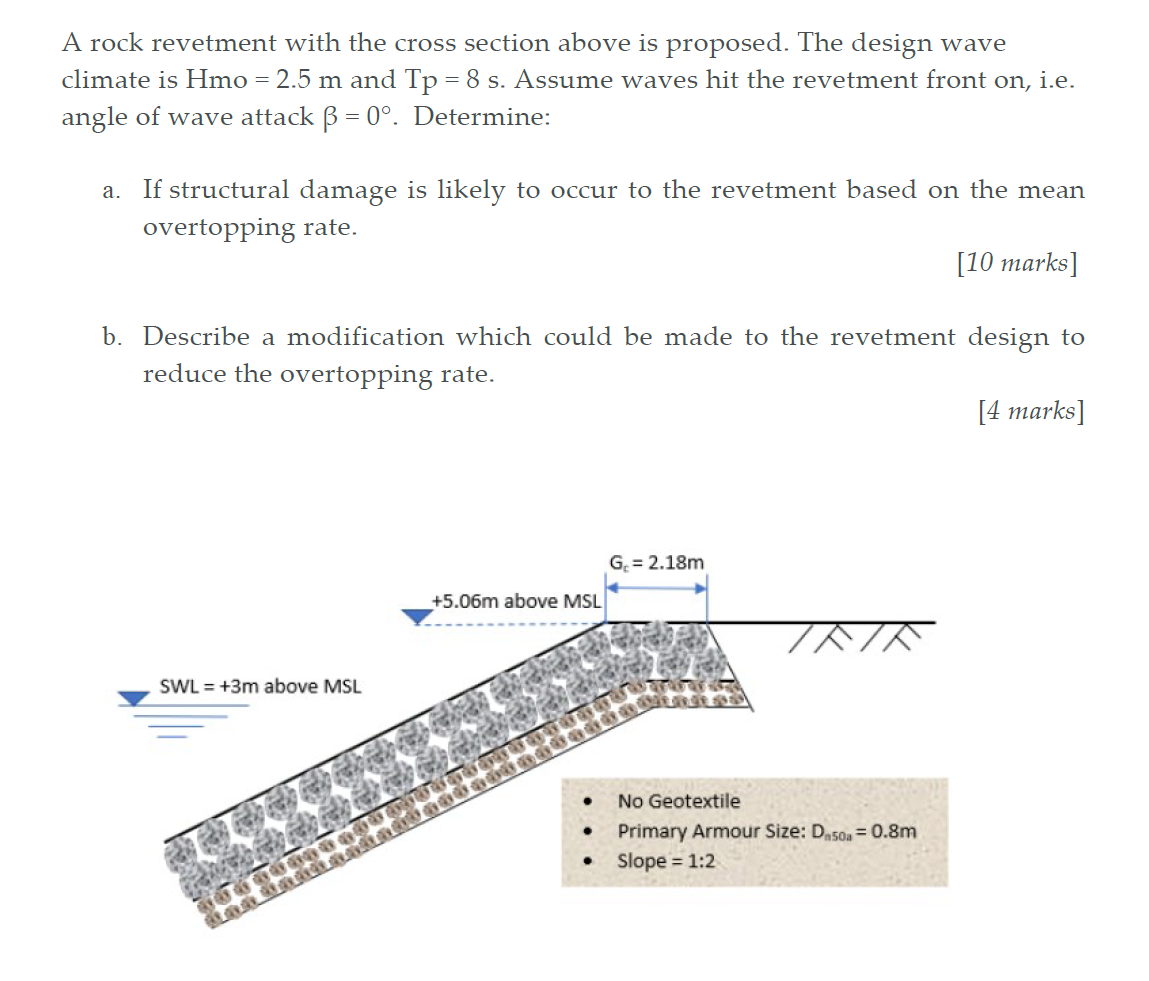

A Rock Revetment With The Cross Section Above Is Proposed The Design Wave Climate Is Hmo 2 5 M And Tp 8 S Assume W 1 (360.57 KiB) Viewed 17 times

A rock revetment with the cross section above is proposed. The design wave climate is Hmo = 2.5 m and Tp = 8 s. Assume waves hit the revetment front on, i.e. angle of wave attack B = 0º. Determine: = a. If structural damage is likely to occur to the revetment based on the mean overtopping rate. [10 marks] b. Describe a modification which could be made to the revetment design to reduce the overtopping rate. [4 marks] G = 2.18m +5.06m above MSL 7 SWL = +3m above MSL 900 No Geotextile Primary Armour Size: D 50a = 0.8m Slope = 1:2 34000 ASIA
