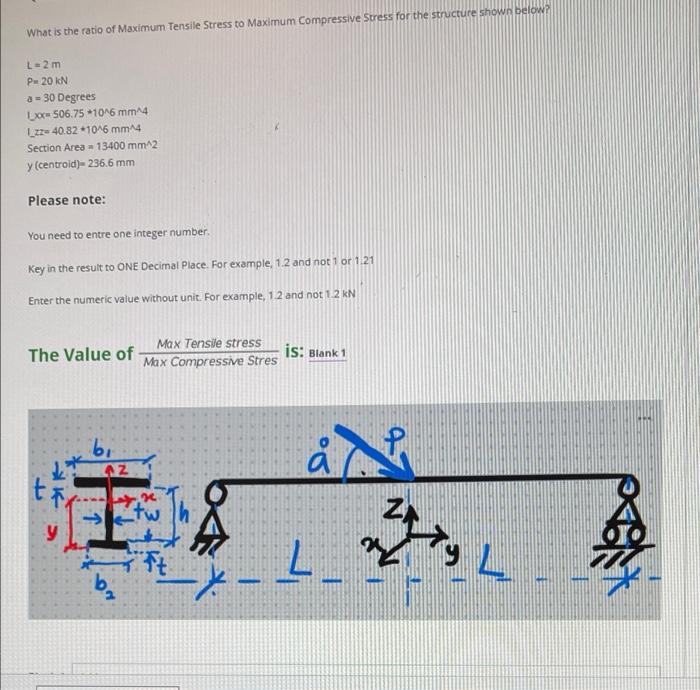

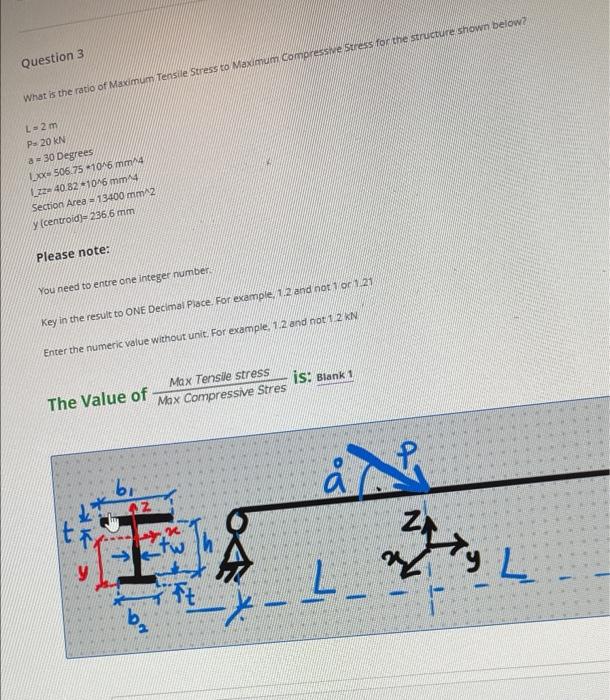

Question 3 What is the ratio of Maximum Tensile Stress to Maximum Compressive Stress for the structure shown below? L-2 m P- 20 KN 8 = 30 Degrees LC506.75*10^6 mm 4 L 40.82*10^6 mm 14 Section Area - 13400 m 2 y (centroid)=236,6 mm Please note: You need to entre one integer number: Key in the result to ONE Decimal Place. For example, 1.2 and not 121 Enter the numeric value without unit. For example, 1.2 and not 1 2 KN is: Blank 1 Max Tensile stress Max Compressive Stres The Value of bi a AZ E 잘 у L. NYL na
What is the ratio of Maximum Tensile Stress to Maximum Compressive Stress for the structure shown below L-2 m P- 20 KN 2 = 30 Degrees xr506.75*10^6 mm 4 Lzz 40.82*10^6 mm 4 Section Area = 13400 mm^2 y (centroid)- 236.6 mm Please note: You need to entre one integer number Key in the result to ONE Decimal Place. For example, 1.2 and not 1 or 1:21 Enter the numeric value without unit. For example, 1.2 and not 12 KN Max Tensile stress The Value of Max Compressive Stres is: Blank 1 6, AZ A 01-18 у L
