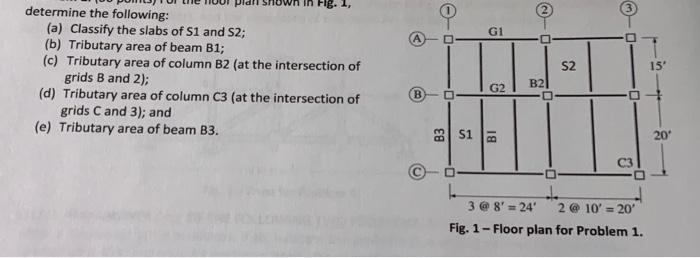

G1 A determine the following: (a) Classify the slabs of S1 and S2; (b) Tributary area of beam B1; (c) Tributary area of column B2 (at the intersection of grids B and 2); (d) Tributary area of column C3 (at the intersection of grids C and 3); and (e) Tributary area of beam B3. S2 15 G2 B2 B ELE S1 20 3 @ 8'-24' 2 @ 10' = 20 Fig. 1 - Floor plan for Problem 1.
