Emergency Concrete C20 B Mm 400 H Mm 650 1 (46.49 KiB) Viewed 11 times
Concrete = C20
b (mm) =400
h (mm) = 650

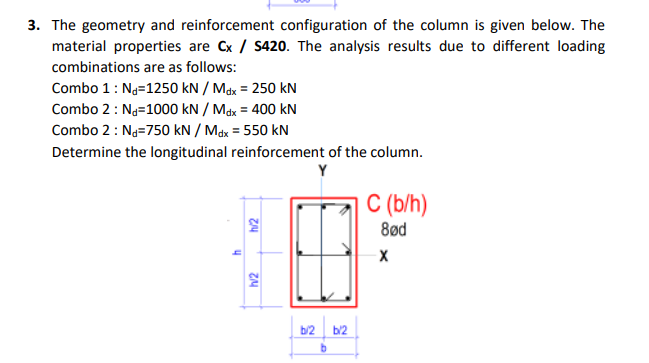

3. The geometry and reinforcement configuration of the column is given below. The material properties are Cx / S420. The analysis results due to different loading combinations are as follows: Combo 1: Nd=1250 kN / Mdx = 250 KN Combo 2: Nd=1000 kN / Mdx = 400 KN Combo 2: Nd=750 kN / Mdx = 550 KN Determine the longitudinal reinforcement of the column. C (b/h) h2 8ød х n W2 b2 b/2
