Question 17 The figure shows a pile group sa site. There are mine piles in the past the fire. The diameter och sommer ce

[answerhappygod]

Question 17 The Figure Shows A Pile Group Sa Site There Are Mine Piles In The Past The Fire The Diameter Och Sommer Ce 1 (39.56 KiB) Viewed 9 times

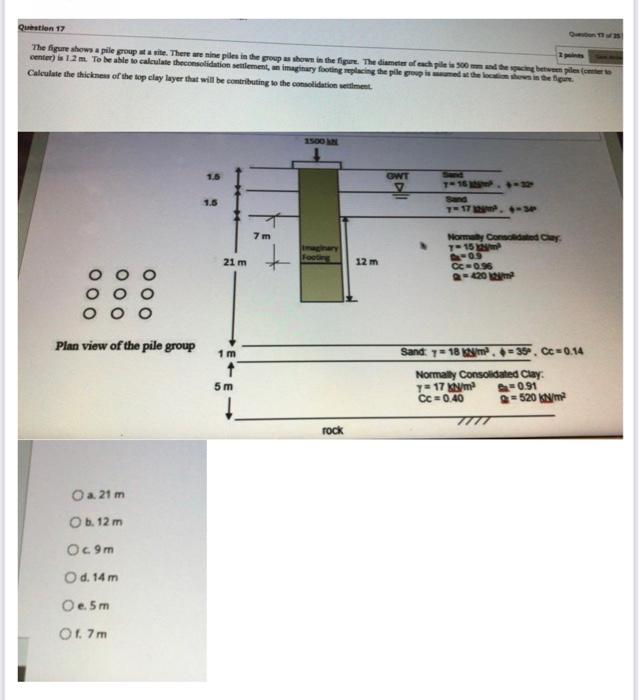

The figure shows a pile group at a site. There are nine piles in the group as shown in the figure. The diameter of each pile is 500 mm and the spacing between piles (center to
center) is 1.2 m. To be able to calculate theconsolidation settlement, an imaginary footing replacing the pile group is assumed at the location shown in the figure.
Calculate the thickness of the top clay layer that will be contributing to the consolidation settlment.
Question 17 The figure shows a pile group sa site. There are mine piles in the past the fire. The diameter och sommer center) 12 m. To be able to calculate theconsolidation willement maga footing placing the pile Calculate the thicknew of the top clay layer that will be cominibuting to the comedidasie met 1.6 GWT 프 T= 15.2 Sand 17.3 1.5 7 m Mommy Coded Cher T-15 21 m 12 m CC=0.95 ООО ООО OOO Plan view of the pile group 1 m 1 Sand - 18 km.-36. CC= 0.14 Normally Consolidated Clay Y-17 km 0.91 Cc = 0.40 Q-520 km 5m 71 rock O a. 21 m O b. 12 m Oc9m O d. 14 m O e.5 m Of.7 m
