Question 12 What is the minimum number of independent displacements for the below structure if the Slope Deflection meth

Post by **answerhappygod** » Sat May 21, 2022 2:34 pm

: Question 12 What Is The Minimum Number Of Independent Displacements For The Below Structure If The Slope Deflection Meth 1 (51.79 KiB) Viewed 12 times

: Question 12 What Is The Minimum Number Of Independent Displacements For The Below Structure If The Slope Deflection Meth 2 (33.14 KiB) Viewed 12 times

: Question 12 What Is The Minimum Number Of Independent Displacements For The Below Structure If The Slope Deflection Meth 3 (41.98 KiB) Viewed 12 times

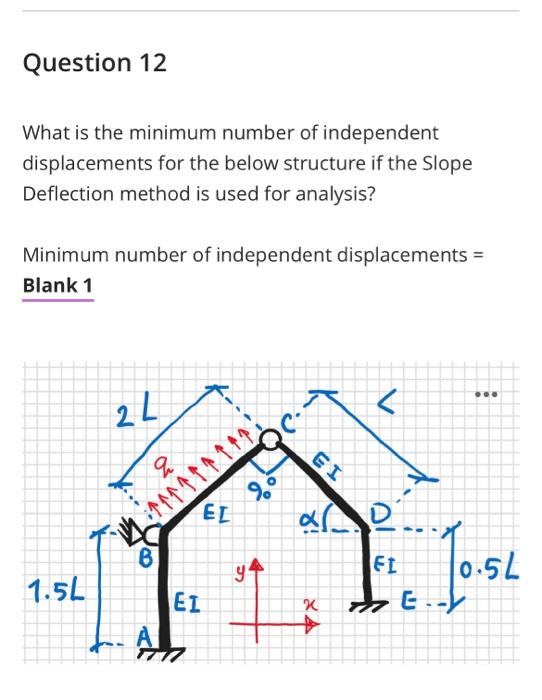

Question 12 What is the minimum number of independent displacements for the below structure if the Slope Deflection method is used for analysis? Minimum number of independent displacements = Blank 1 .. 22 < C: EI 9. 2 111111 EL mo AND EL 10.5L DE E V y 4 1.5L x EL ALL LA

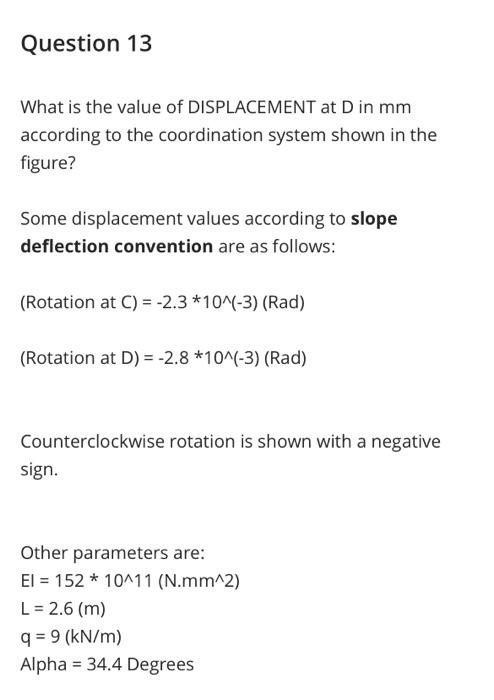

Question 13 What is the value of DISPLACEMENT at Din mm according to the coordination system shown in the figure? Some displacement values according to slope deflection convention are as follows: (Rotation at C) = -2.3 *10^(-3) (Rad) (Rotation at D) = -2.8 *10^(-3) (Rad) Counterclockwise rotation is shown with a negative sign. Other parameters are: El = 152 * 10^11 (N.mm^2) L = 2.6 (m) q = 9 (kN/m) Alpha = 34.4 Degrees

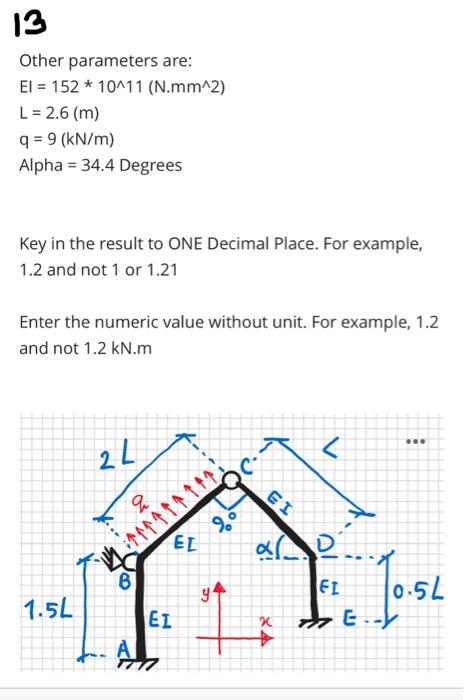

13 Other parameters are: El = 152 * 10^11 (N.mm^2) L = 2.6 (m) 9 = 9 (kN/m) Alpha = 34.4 Degrees Key in the result to ONE Decimal Place. For example, 1.2 and not 1 or 1.21 Enter the numeric value without unit. For example, 1.2 and not 1.2 kN.m 24 < C EI 2 1919 19 9. EL QA2 B yt EL E. 10.52 1.5L EL x
