In The Below Structure What Is The Value Of Shear Force At Point Xin Kn According To The Sign Convention P 14 8 Kn W 1 (23.59 KiB) Viewed 9 times
In The Below Structure What Is The Value Of Shear Force At Point Xin Kn According To The Sign Convention P 14 8 Kn W 2 (27.63 KiB) Viewed 9 times

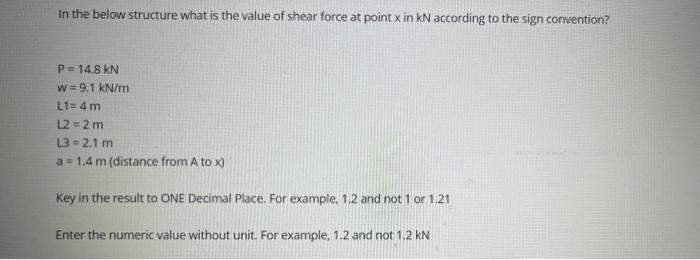

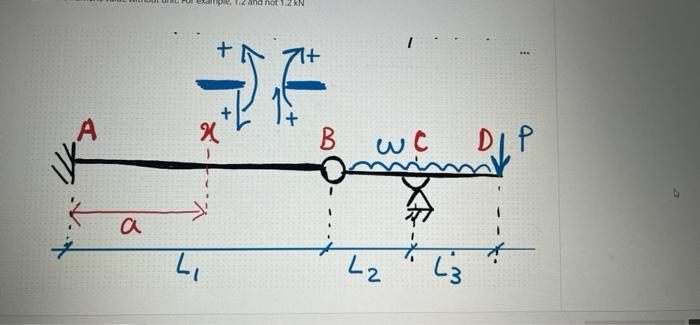

In the below structure what is the value of shear force at point xin kN according to the sign convention? P = 14.8 KN w = 9.1 kN/m L1= 4 m L2 = 2 m L3 - 2.1 m a = 1.4 m (distance from A to x) Key in the result to ONE Decimal Place. For example, 1.2 and not 1 or 1.21 Enter the numeric value without unit. For example, 1.2 and not 1.2 kN
not 1 Z KN + A X B. we DIP a Li L₂ 3ا
