Emergency B Mm 350 H Mm 600 D Mm 18 1 (29.55 KiB) Viewed 14 times
b (mm)=350
h (mm) =600
d (mm)= 18

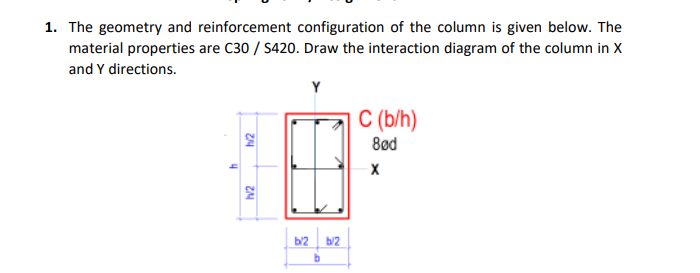

1. The geometry and reinforcement configuration of the column is given below. The material properties are C30 / S420. Draw the interaction diagram of the column in X and Y directions. Y C (b/h) 8ød х 12 D 12 b/2 2
