Problem 4. (45 points) For the statically determinate truss shown in Fig. 4, determine the reactions at A (pin), H (roll

Post by answerhappygod »

Problem 4 45 Points For The Statically Determinate Truss Shown In Fig 4 Determine The Reactions At A Pin H Roll 1
Problem 4 45 Points For The Statically Determinate Truss Shown In Fig 4 Determine The Reactions At A Pin H Roll 1 (32.47 KiB) Viewed 25 times

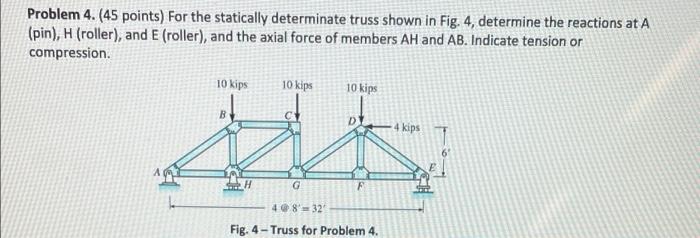

Problem 4. (45 points) For the statically determinate truss shown in Fig. 4, determine the reactions at A (pin), H (roller), and E (roller), and the axial force of members AH and AB. Indicate tension or compression. 10 kips 10 kips 10 kips B D 4 kips G F 48= 32 Fig. 4-Truss for Problem 4.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
