Consider a point in a structural member that is subjected to plane stress. Normal and shear stresses acting on horizonta

Post by answerhappygod »

Consider A Point In A Structural Member That Is Subjected To Plane Stress Normal And Shear Stresses Acting On Horizonta 1
Consider A Point In A Structural Member That Is Subjected To Plane Stress Normal And Shear Stresses Acting On Horizonta 1 (87.57 KiB) Viewed 14 times

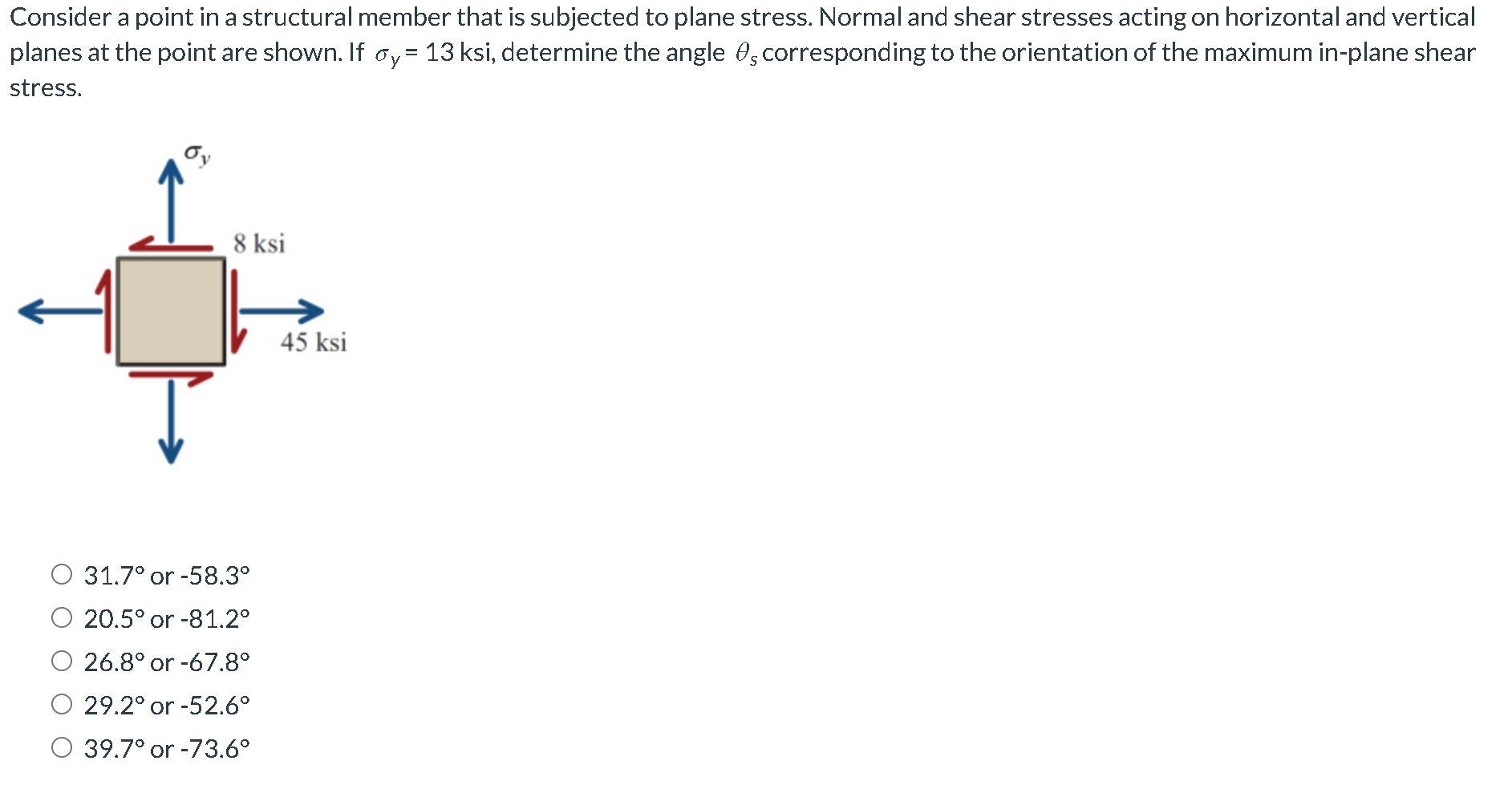

Consider a point in a structural member that is subjected to plane stress. Normal and shear stresses acting on horizontal and vertical planes at the point are shown. If Oy= 13 ksi, determine the angle os corresponding to the orientation of the maximum in-plane shear stress. = gy 8 ksi 45 ksi 31.7° or -58.3° 0 20.5° or -81.2° O 26.8° or -67.8° O 29.2° or -52.6° O 39.7° or -73.6°
