Problem 5.b. (45 points) Determine the value of the point load P required of the beam in Fig. 6 to produce zero vertical

[answerhappygod]

Problem 5 B 45 Points Determine The Value Of The Point Load P Required Of The Beam In Fig 6 To Produce Zero Vertical 1 (26.74 KiB) Viewed 14 times

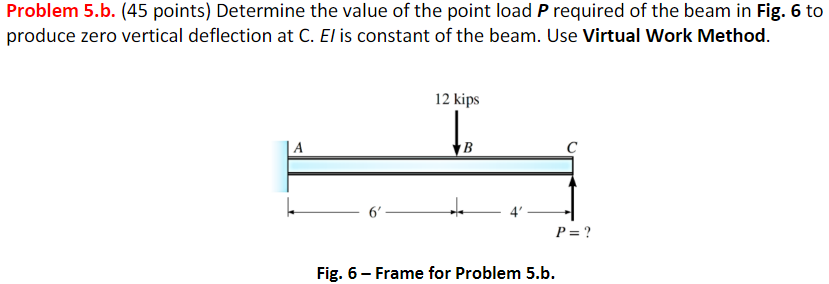

Problem 5.b. (45 points) Determine the value of the point load P required of the beam in Fig. 6 to produce zero vertical deflection at C. El is constant of the beam. Use Virtual Work Method. 12 kips be | A B P= ? Fig. 6 -Frame for Problem 5.b.
