Problem 4. (45 points) For the statically determinate truss shown in Fig. 4, determine the reactions at A (pin), H (roll

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Problem 4. (45 points) For the statically determinate truss shown in Fig. 4, determine the reactions at A (pin), H (roll

Post by answerhappygod »

Problem 4 45 Points For The Statically Determinate Truss Shown In Fig 4 Determine The Reactions At A Pin H Roll 1
Problem 4 45 Points For The Statically Determinate Truss Shown In Fig 4 Determine The Reactions At A Pin H Roll 1 (21.2 KiB) Viewed 25 times

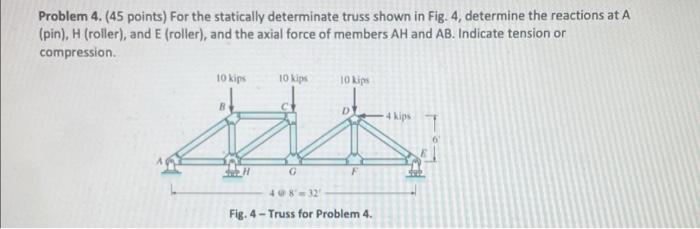

Problem 4. (45 points) For the statically determinate truss shown in Fig. 4, determine the reactions at A (pin), H (roller), and E (roller), and the axial force of members AH and AB. Indicate tension or compression 10 kips 10 kips 10 tips D 4 lips HE 40812 Fig. 4 - Truss for Problem 4.
