The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29.000 ksi: 1 = 170 in *). Assu

Post by answerhappygod »

The Simply Supported Beam Consists Of A W10 X 30 Structural Steel Wide Flange Shape E 29 000 Ksi 1 170 In Assu 1
The Simply Supported Beam Consists Of A W10 X 30 Structural Steel Wide Flange Shape E 29 000 Ksi 1 170 In Assu 1 (28.53 KiB) Viewed 19 times

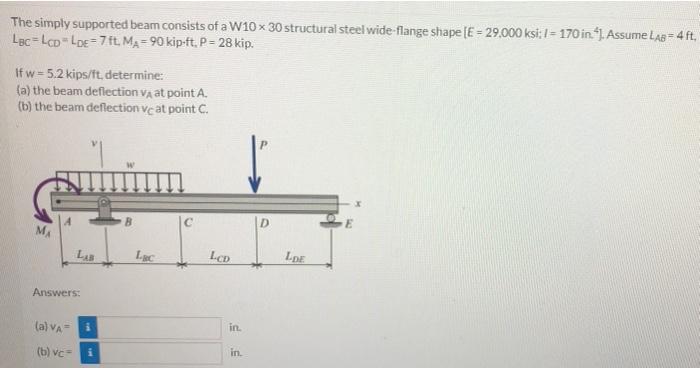

The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29.000 ksi: 1 = 170 in *). Assume LA-4ft, Loc=LCD Loe=7 ft. Ma=90 kip-ft, P = 28 kip. If w = 5.2 kips/ft, determine: (a) the beam deflection VA at point A. (b) the beam deflection ve at point C. B с MA Lu LBC Lo LDE Answers: (a) VA- i in (b) VC= in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
